Preview Configuration
NOTE Refer to Worksheets A and B when checking the
configuration.

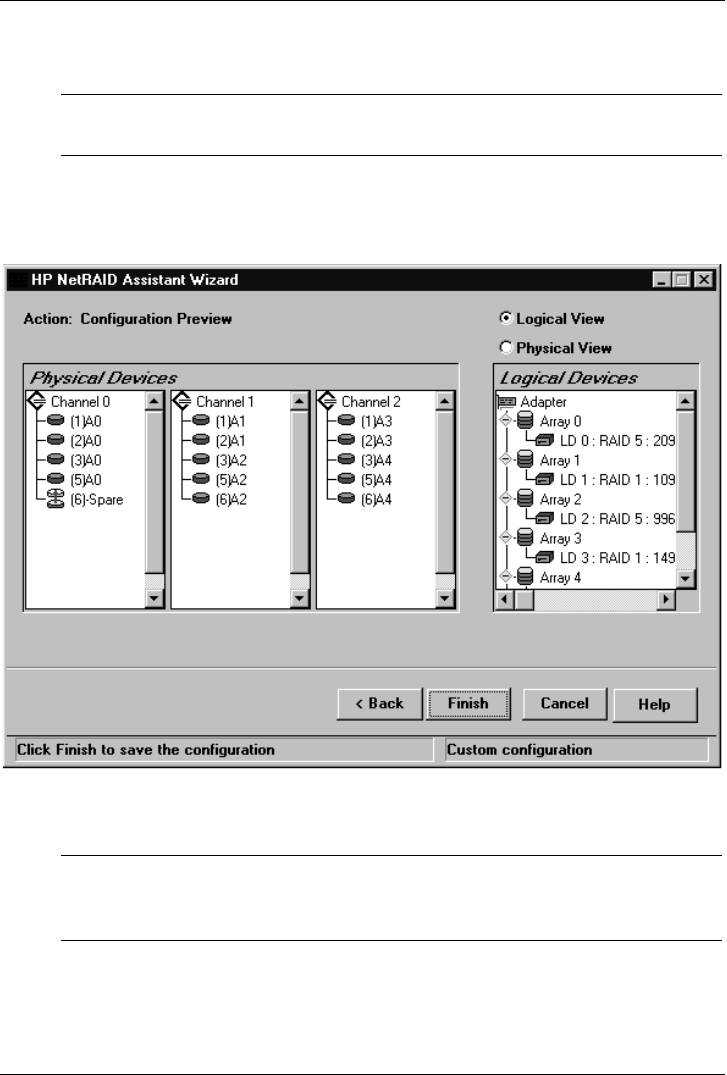

The HP NetRAID Assistant Wizard Configuration Preview window, shown in
Figure 5-9, displays the configuration proposed for the physical and logical
drives.
Figure 5-9. HP NetRAID Assistant Wizard Configuration Preview Window
NOTE The RAID level of a logical drive that spans arrays lacks the
terminal zero. Mentally add it to make RAID 1 into RAID 10,
RAID 3 into RAID 30, and RAID 5 into RAID 50.
To switch between showing logical drives and physical drives:
• Click Logical View or Physical View.
