HP Netserver LPr Quick Service Guide

9
16 Battery 5183-6570
17 Video memory 1818-6527
18 Network adapter card (NIC) D5013-63001
19 Rear panel (not orderable)
20 SCSI repeater card D6129-63006
21 PCI stabilizer (not orderable)
22 PCI access door (not orderable)
23 Power supply D6129-63003 D6129-69003
24 Bezel kit (HP pictured)
Bezel kit, 3rd party
D6130-60002
D6130-60003
25 System board D6129-63001 D6129-69001
Cables
Cable Part Number
SCSI Terminator Power 5183-7652
I2C 5183-6815
Management Port 5183-6816
IDE, CD-ROM 5183-6817
Control panel 5183-6818
Floppy drive 5183-6819
SCSI 5183-6820
AC internal 5183-6855
External SCSI/Riser Terminal 5183-8312

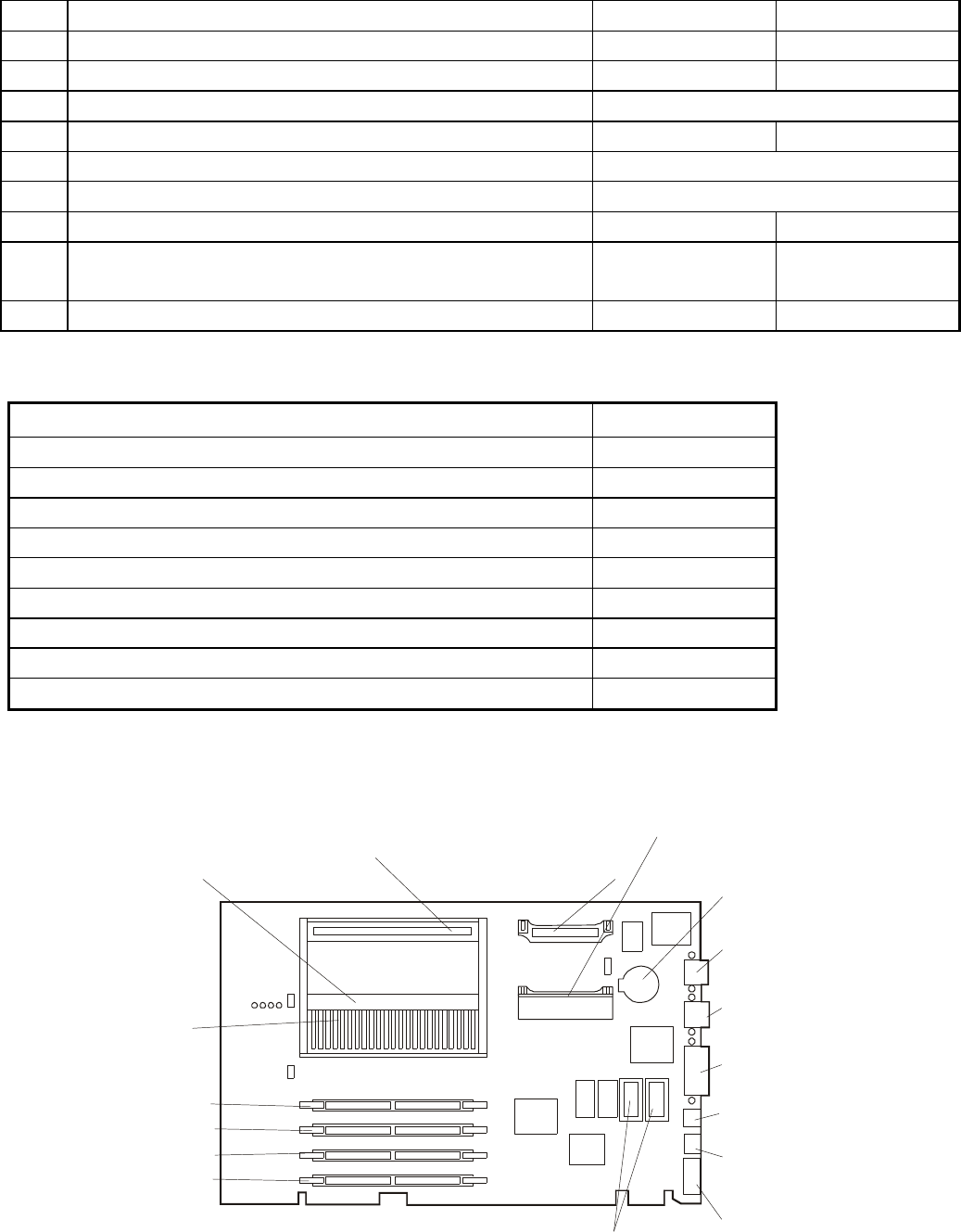

System Board Illustration
Processor
Module
Processor Module
Slot #1
Processor Module
Slot #2
DIMM Slot 3
DIMM Slot 0
DIMM Slot 1
DIMM Slot 2
Serial B Port
Connector
Serial A Port
Connector
Mouse
Connector
Keyboard
Connector
Monitor
Connector
Voltage Regulator
Module #2 Slot
Voltage Regulator
Module #1 Slot
Additional Video
Memory Sockets
Battery
Parallel Port
Connector
