HP Netserver LPr Quick Service Guide

3
Memory

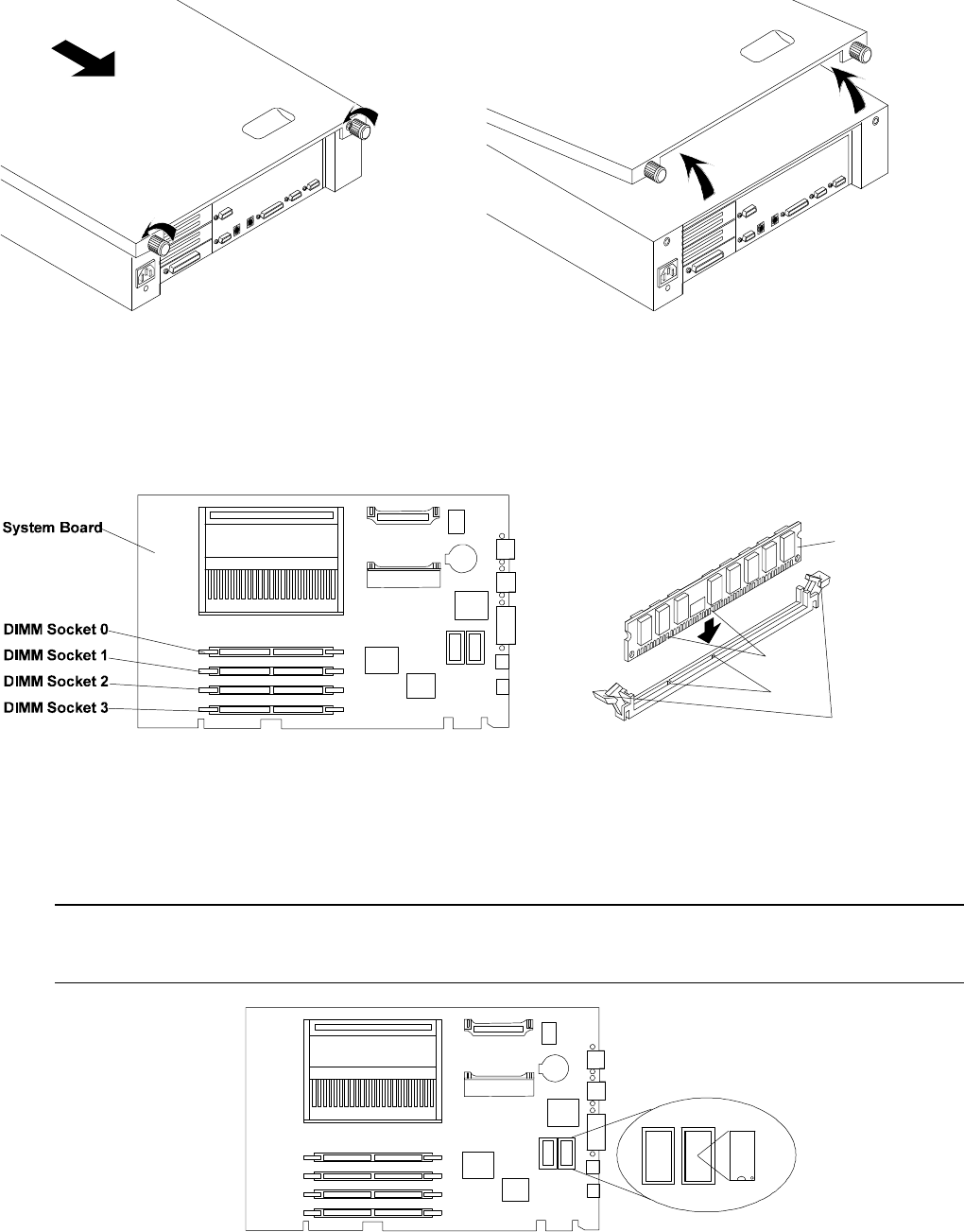

The NetServer LPr's main memory is implemented with 5V SDRAM DIMMs (Dual In-Line Memory Modules). The
NetServer LPr ships with at least 64 MB of main memory and supports up to 1 GB. Memory is available in the following
DIMM capacities: 64, 128, and 256 MB. There are four DIMM sockets on the system board. DIMMs may be installed
in any combination in any socket. However, we recommend starting at socket 0 and filling the sockets in numerical
order: 1, 2, and 3. Use only HP DIMMs.
Retaining Clips
DIMM
Keys
Notches
Video Memory
The HP NetServer LPr comes standard with a 1 MB frame buffer to support video displays of 1024 (horizontal pixels)
x768 (vertical lines) x 256 (colors per pixel) at refresh rates up to 72 Hz. You can upgrade the frame buffer to 2 MB to
support 1280 x 1024 by adding two memory chips.
NOTE The video memory chips must be installed in pairs. To get a higher resolution display, you may
have to load additional video drivers for the operating system. Refer to the instructions that
accompanied the video memory upgrade kit as well as your NOS documentation.
Video Memory Sockets
Align notch with socket
