Introduction
45xx Modular Disk Subsystem Manual for G-Series Releases—142466
1-7
Disk Drives
Disk Drive Ejectors
Each disk drive has an ejector (shown in Figure 1-3) that, when closed, seats the drive in
its connector on the midplane. This ejector can be locked to prevent unauthorized
removal of the disk drive. Each 45xx module is shipped with two identical pentagonal
keys that lock and unlock the ejectors.

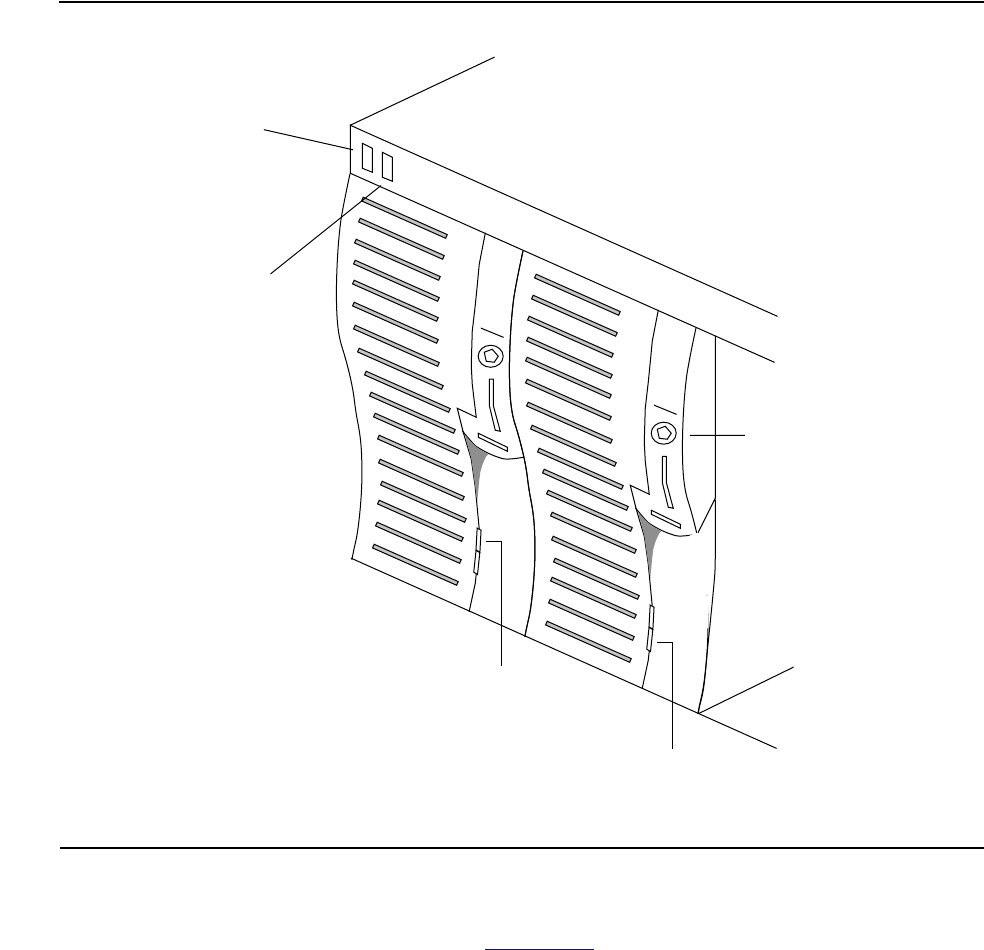

Figure 1-3. Module and Disk Drive LEDs
005CDT .CDD
Module
LED
(Green)
Module
LED
(Amber-Orange)
Disk drive
Power-On LED
(Green)
Disk Drive
Activity LED
(Amber-Orange)
Ejector
