Modular Storage System Height Limitations
Modular Storage System Height Limitations
A modular storage system stack is limited to a maximum installed height of one 7159
pedestal and four frames (10 modules maximum). This height is equivalent to 205
centimeters (80 inches) from the floor to the top surface of the stack (if using a 7159
pedestal). See Figure 1-11 on page 1-18. The maximum stack height that can be
shipped, however, is one 7159 pedestal and two frames (six modules). The shipping
height cannot exceed 142 centimeters (56 inches) from the floor to the top surface.

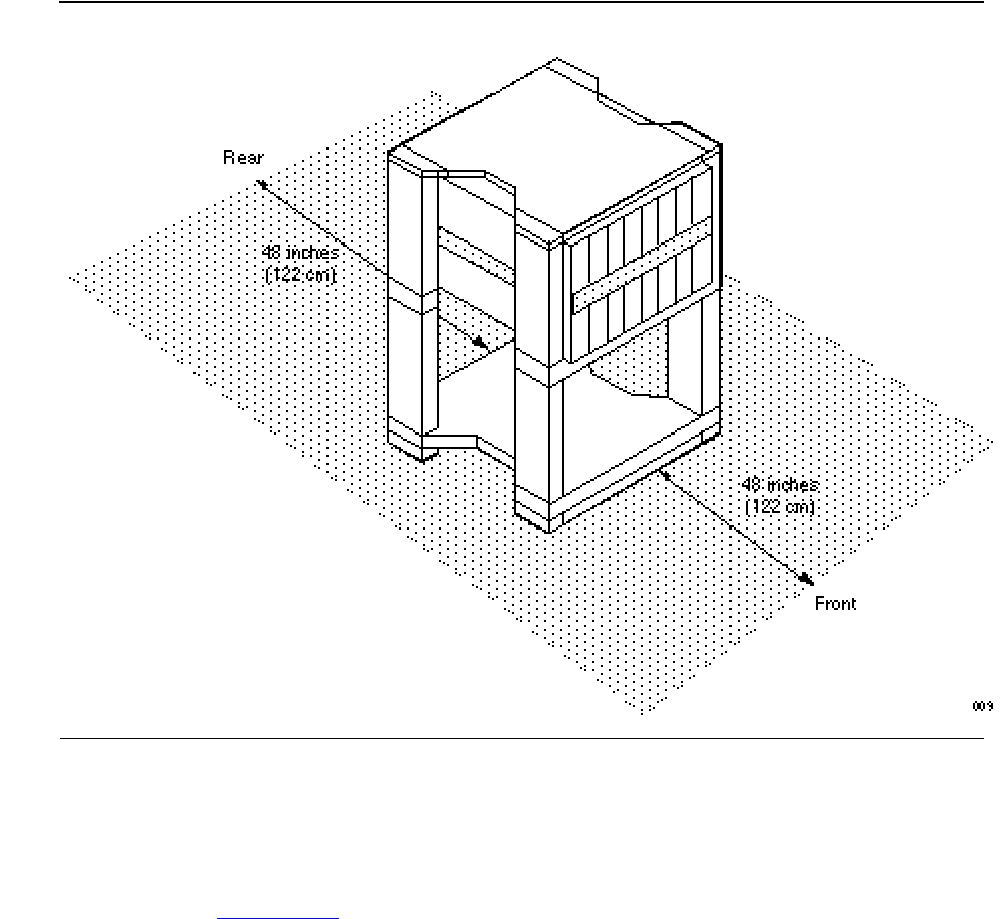

Figure 1-10. Service Clearances
