Removing a Fan CRU With an Ejector
4. To check that the interface bracket positioned in Step 1 is securely in place, pull
back on the right-hand side of the fan CRU. If it is not secure, remove the fan CRU
and start again at Step 1.
Removing a Fan CRU With an Ejector
To remove a fan CRU that has an ejector, follow this procedure (see Figure 4-4):
1. While grasping the right-hand handle of the fan CRU, press down on the blue button
on the ejector on the left-hand side of the fan CRU.
2. Lift the ejector.
3. Grasping both handles, lift the fan CRU back and away from the 45xx disk module.

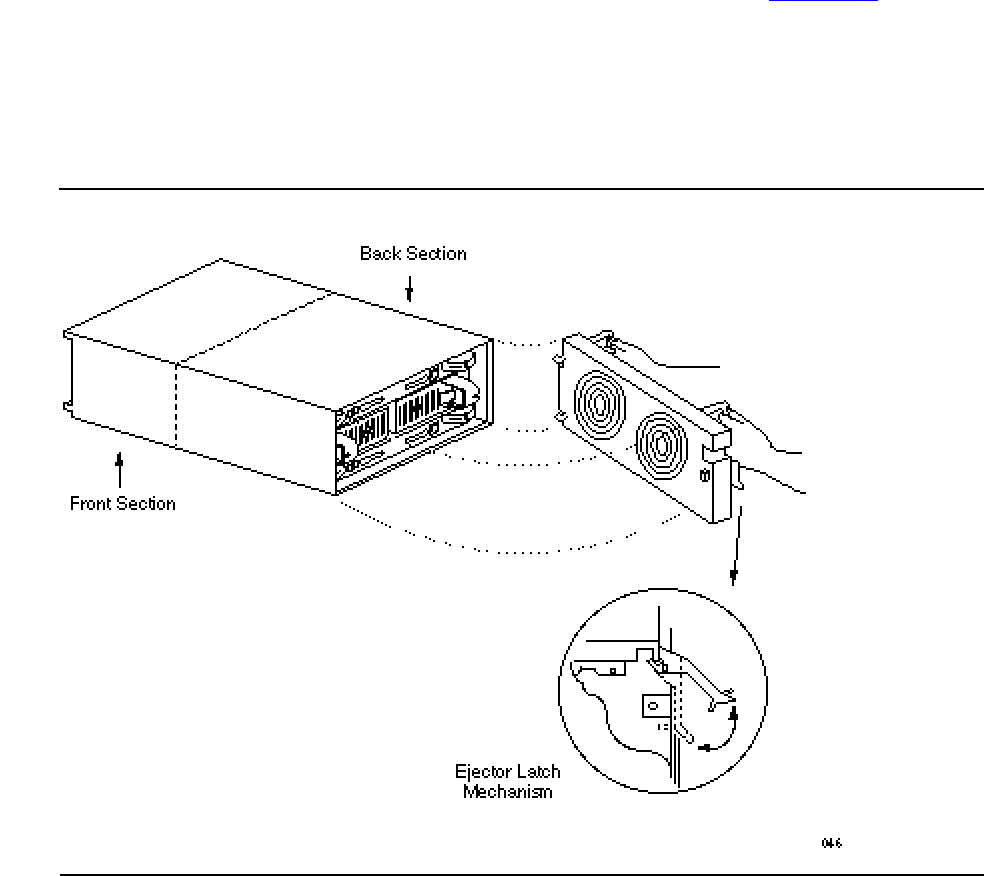

Figure 4-4. Removing or Installing a Fan CRU With an Ejector
