Pedestal Model
29
8. Guide the power cord up through the hole in the lower right back
corner of the cabinet (see Figure 5). Thread the power cord inside
the bracket where the gas spring is attached.
9. Plug the power cord into the printer AC power connector, then into
the AC power outlet.
Pedestal Model

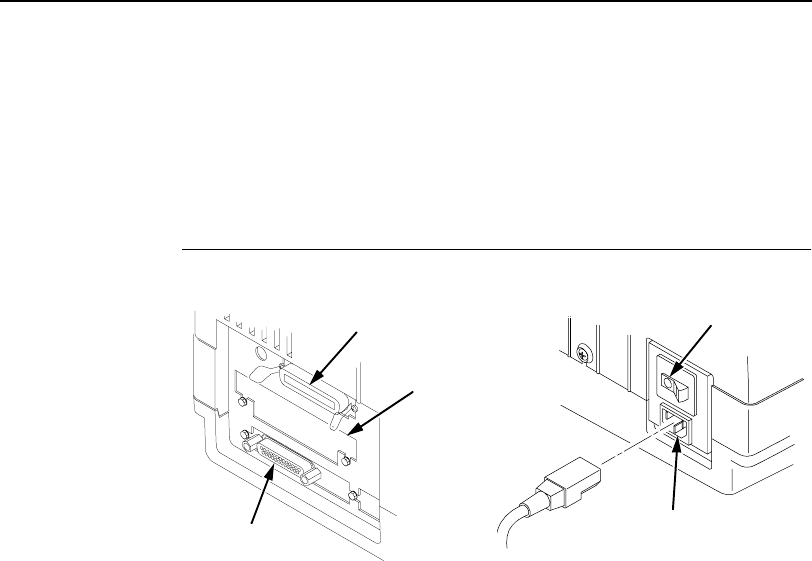

Legend:
1) Parallel Connector
2) Auxiliary I/O
3) Serial Connector
4) Power Switch
5) AC Power Connector
1. Make sure the printer power switch is set to O (OFF).
2. Remove the cover from the I/O connector you have selected. (See
below.)
3. Attach the cable connector to the printer interface connector.
Plug the power cord into the printer AC power connector, then into the
AC power outlet.
1
2
3
4
5
