Chapter 2 Install Basic Components
34
Load the Paper
When you start this procedure, verify that the printer cover is open, the
forms thickness lever is raised, and the tractor doors are open. (See
“Printer Component Locations” on page 18).

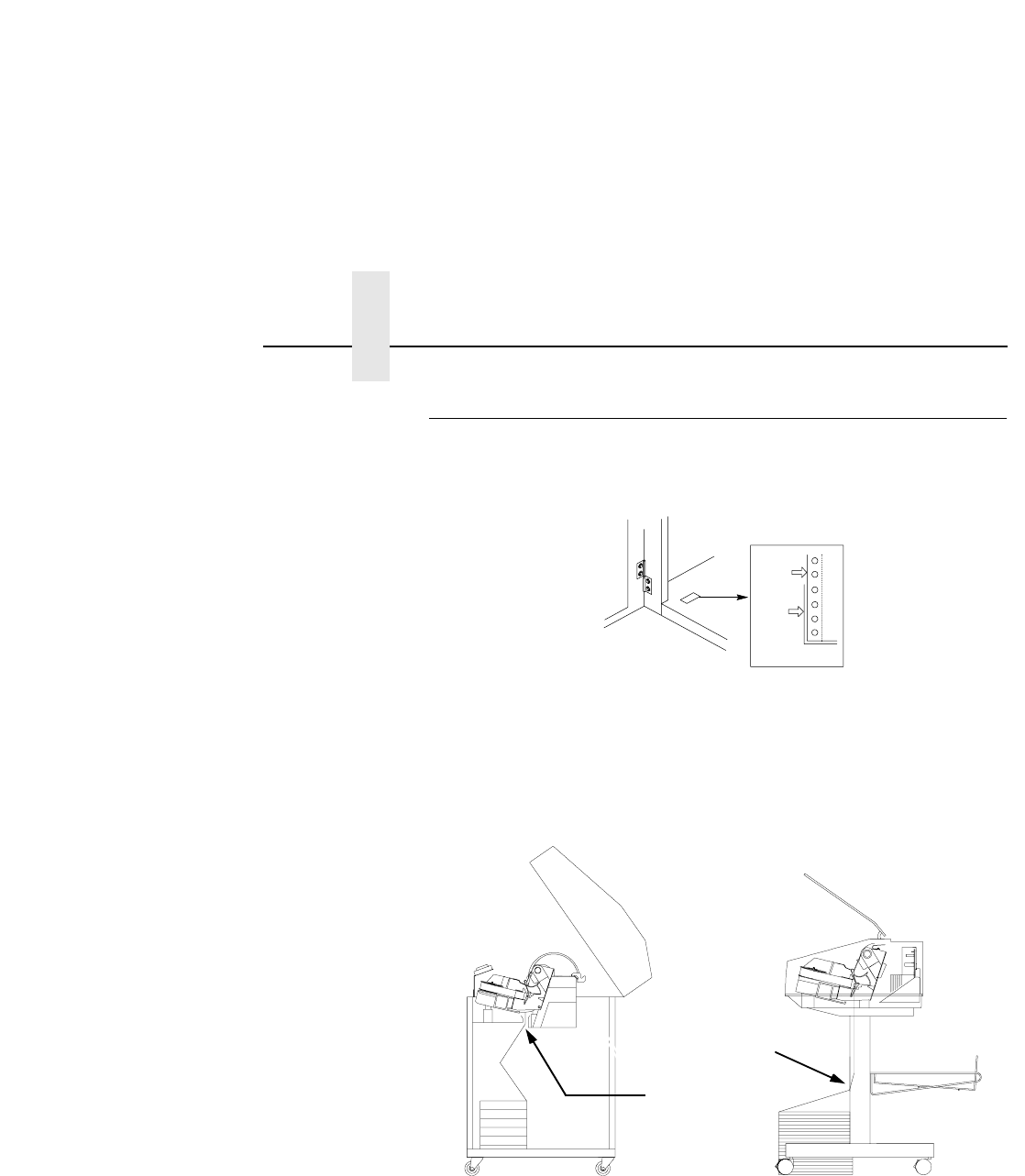

Legend:
1) Edge Of Paper
2) Box
1. For cabinet models, align the paper supply with the label on the
floor. Make sure that the paper pulls freely from the box.
2. Feed the paper up through the paper slot (3). Hold the paper in
place with one hand (to prevent it from slipping down through the
paper slot) while pulling it through from above with your other hand.
1
2
3
3
