Chapter 2 Set the Top-of-Form
38
Set the Top-of-Form
When paper is loaded into the printer, it must be told where you want
the top of your form to be. This procedure must be performed the first
time paper is introduced into the printer, as well as every time new
paper is loaded.
Procedure
1. Be sure the forms thickness lever is lowered. If the printer is off, set
the power switch to I (On).
2. Press ON LINE to place the printer in offline mode. The LCD will
then display “OFFLINE / CONFIG. CONTROL.”
3. Press FF several times to ensure the paper feeds properly beyond
the tractors and over the lower paper path. Ensure the paper folds
properly in the stacking area.

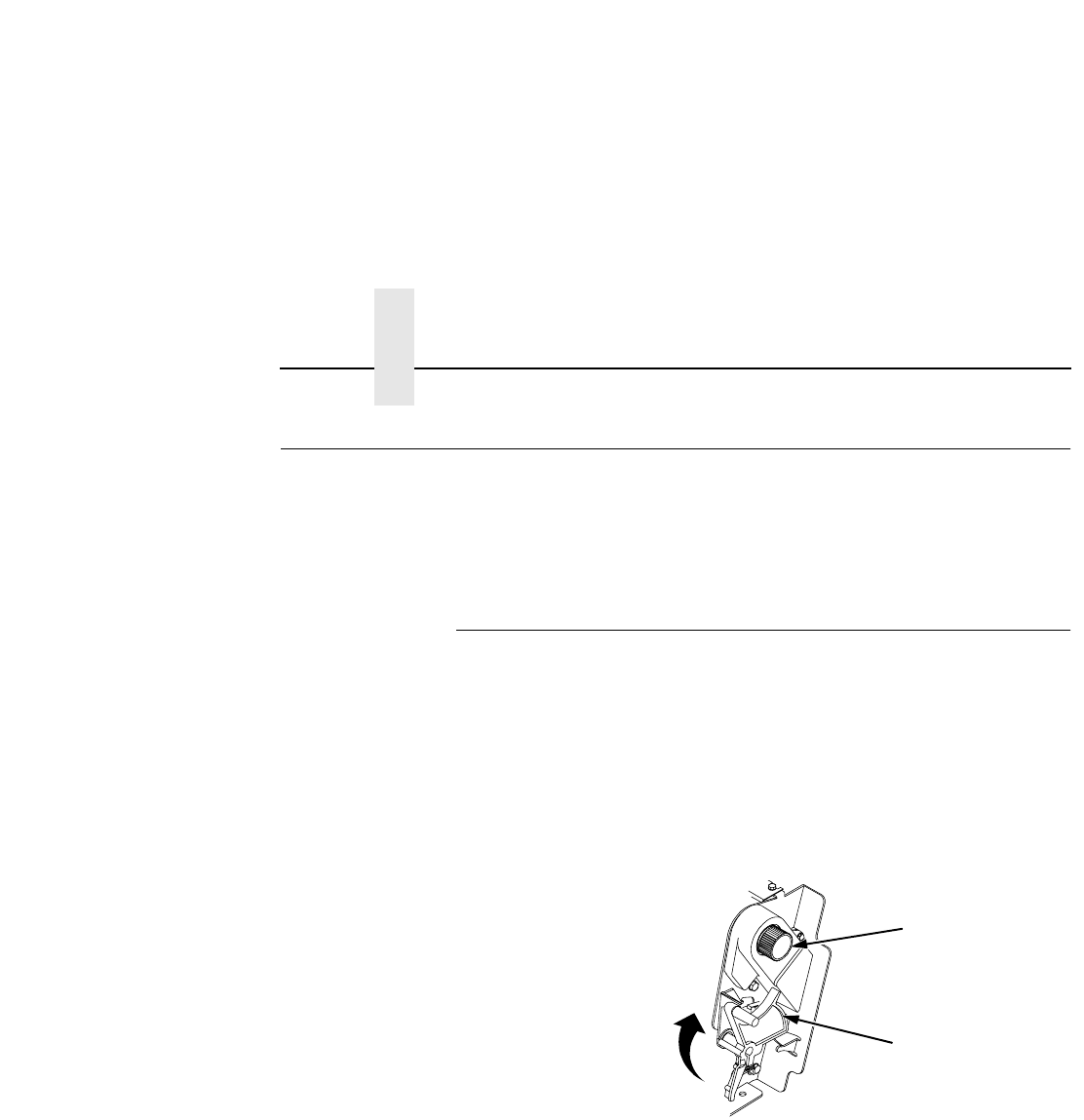

4. Raise the forms thickness lever (1) as far as it will go. This allows
you to turn the vertical position knob (2) freely in order to align the
top-of-form.
1
2
