Reloading Paper
47
Operational Procedures
This section outlines certain basic procedures which need to be
performed when necessary in order to keep your printer operating.
Reloading Paper
Follow this procedure when “LOAD PAPER” displays. (This message
occurs when the last sheet of paper passes through the paper slot.)
This procedure reloads paper without removing the last sheet of the old
paper supply. This action retains the current top of form setting.
1. Raise the printer cover. Raise the forms thickness lever as far as it
will go. (See Figure 3 on page 18 for the location of the lever.)
2. Press CLEAR to turn off the alarm. Do not open the tractor doors or
remove the existing paper.
3. For cabinet models, open the front door. Align the paper supply
with the label on the floor. Ensure the paper pulls freely from the
box.

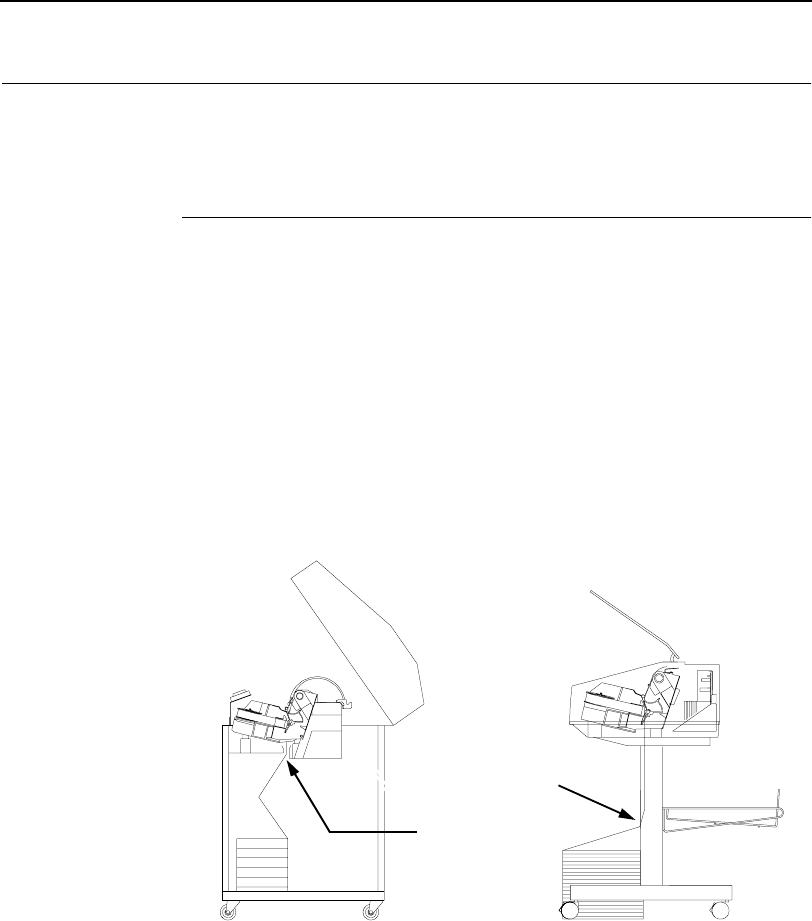

Legend:
1) Paper Slot (Cabinet Model)
2) Paper Slot (Pedestal Model; 8” below printer base)
Figure 11. Paper Slot Location
1
2
