Chapter 3 Operational Procedures
48

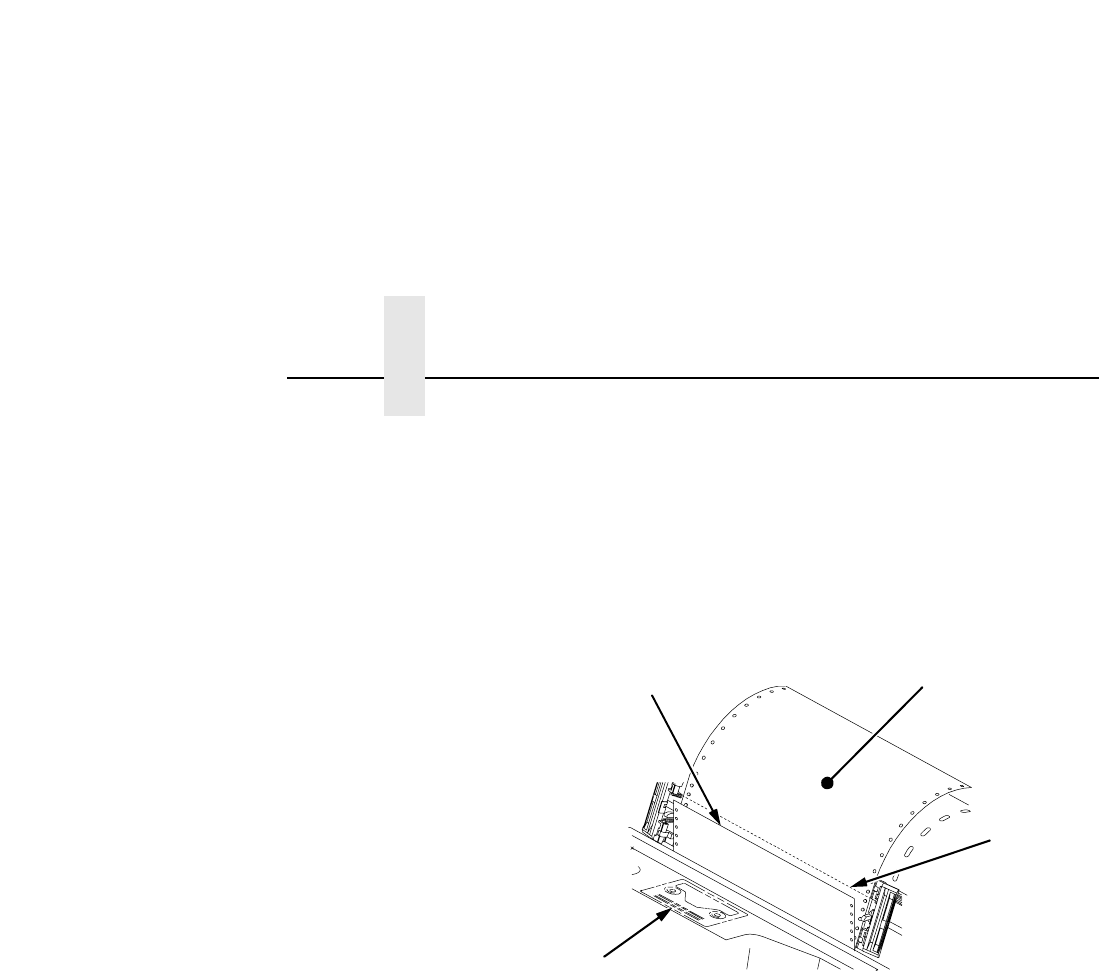

4. Locate the paper slot and feed the paper up through it (see Figure
11). It may be easier to feed one corner of the new paper up
through the slot first. When this corner can be grasped from the top,
rotate the paper back to the normal position.
NOTE: If you are using thick, multi-part forms and are unable to load
the new paper over the existing paper, go to step 14.
5. Hold the paper to prevent it from slipping down and through the
paper slot.
6. Pull the new paper (3) above and behind the ribbon mask, but in
front of the existing paper (4). The ribbon mask location is shown
on the ribbon path diagram (5). If necessary, gently press the
existing paper back.
7. Align the top edge of the new paper with the top perforation of the
existing paper (6).
8. Load the new paper over the existing paper. Open and load the
tractors one at a time to prevent the paper from slipping.
NOTE: Make sure that the top edge of the new paper lines up with the
top horizontal perforation of the last page.
5
3
4
6
