Reloading Paper
51

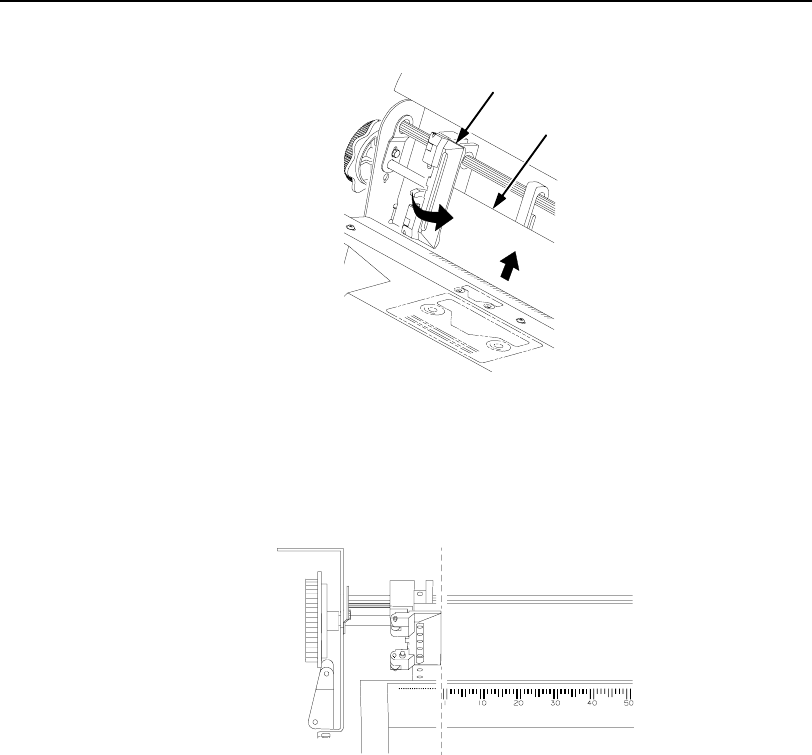

17. Pull the paper (8) above and behind the ribbon mask. (The ribbon
mask location is shown on the ribbon path diagram.)
18. Load the paper on the left tractor and close the tractor door (9).
CAUTION
To avoid damage to the printer caused by printing on the platen,
always position the left tractor unit directly to the left of the “1”
mark on the paper scale.
19. Normally, you should not need to adjust the position of the left
tractor. If adjustment is necessary, unlock the left tractor. Slide the
tractor until it is directly to the left of the number “1” on the paper
scale and lock it. (You can also use the paper scale to count
columns.)
9
8
