Replacing the Ribbon
57
Replacing the Ribbon

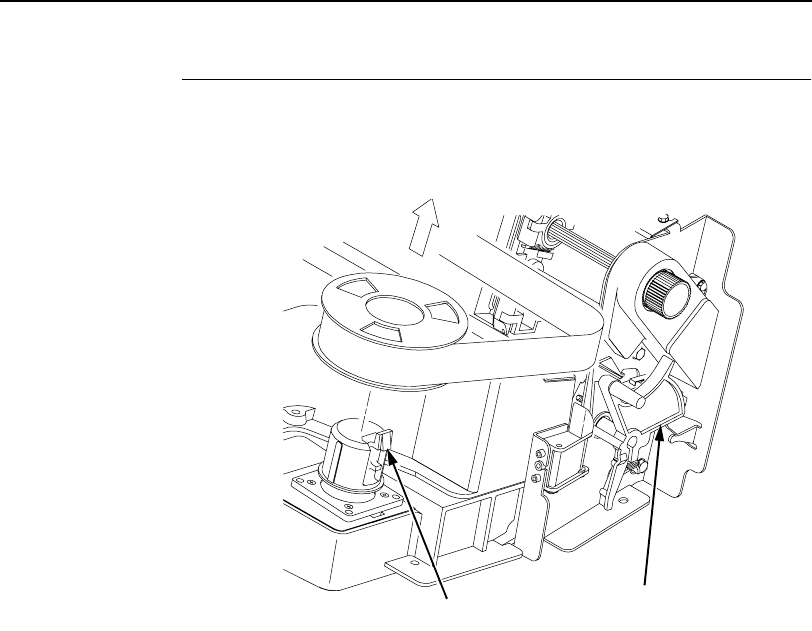

1. Press ON LINE to place the printer in offline mode.
2. Open the printer cover.
3. Remove the old ribbon:
a. Raise the forms thickness lever (1) as far as it will go.
b. Press in on the hub latches (2) and lift the ribbon spools off the
hubs. Lift the ribbon out of the ribbon path.
4. Discard the old ribbon.
5. If necessary, clean the interior of the printer. (See “Cleaning
Requirements” on page 195.)
2
1
