Navigating the Menus
63
Navigating the Menus
To manipulate configurations it is important to understand how to
navigate through the menus. Review the following instructions before
you begin making changes to the printer.
You must be offline to move within the menus.
When the printer is online, the LCD displays ONLINE and the type of
emulation on the second line.
To experiment with navigating the menus, follow the example on the
next page as a tutorial.

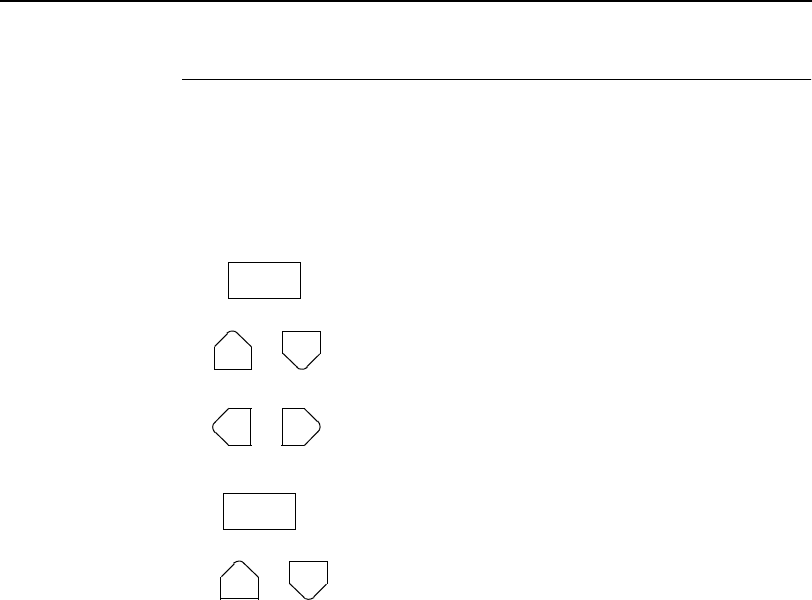

Press to toggle between online and offline
modes.
Press to move up or down through the menu
levels.
Press to scroll through the available choices
on a chosen level.
Press to confirm selection.
Press to lock and unlock the ENTER key. The
ENTER key is locked by default, to prevent
you from accidentally changing the printer
configuration.
ON LINE
OR
OR
ENTER
+
