Introduction to the AWAN Access Server
AWAN 3883/4/5 Access Server Installation and Support Guide—424241-001
1-4
Ethernet LAN Link Module
Ethernet LAN Link Module
The Ethernet LAN link module (Compaq part number U133744) provides the
connection between a model 3884/3884R or model 3885/3885R AWAN access server
and the Ethernet local area network (LAN). The LAN Link Module contains both an
AUI and a 10BaseT hardware interface. The AUI connector has a connector slide lock
that is moved to the leftmost position when using the 10BaseT connector. The 10BaseT
connector is automatically sensed by the circuitry. Only one connector can be used at a
time.
Figure 1-1
shows the panel of an Ethernet LAN link module.
Port Modules
Table 1-2 lists the port modules that are available for models 3884/3884R and
3885/3885R.

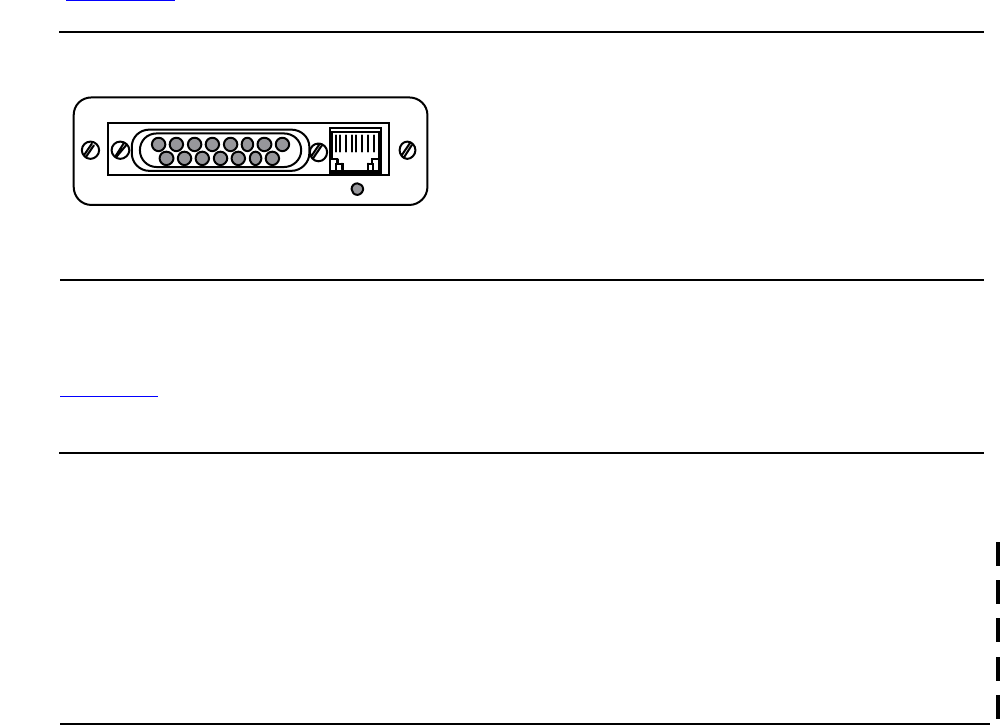

Figure 1-1. Ethernet LAN Link Module
Table 1-2. Link Modules
Module Name New Compaq Part Number
RS-232 Asynchronous Port Module U33745
Asynchronous RS232/20mA Current Loop Port Module U38087
Asynchronous Current Loop Only Port Module 420280-001
V.34 Analog Modem Port Module U33739
IDSN BRI Port Module U33738
AUI 10BASET
CDT019.CDD
