RS-232 Asynchronous Port Module
RS-232 Asynchronous Port Module
The RS-232 Asynchronous port module provides 16 asynchronous RS-232 ports. Each
port has a data transfer rate of up to 115.2 Kbps. You can use RJ-45 connectors to
provide the port connections.

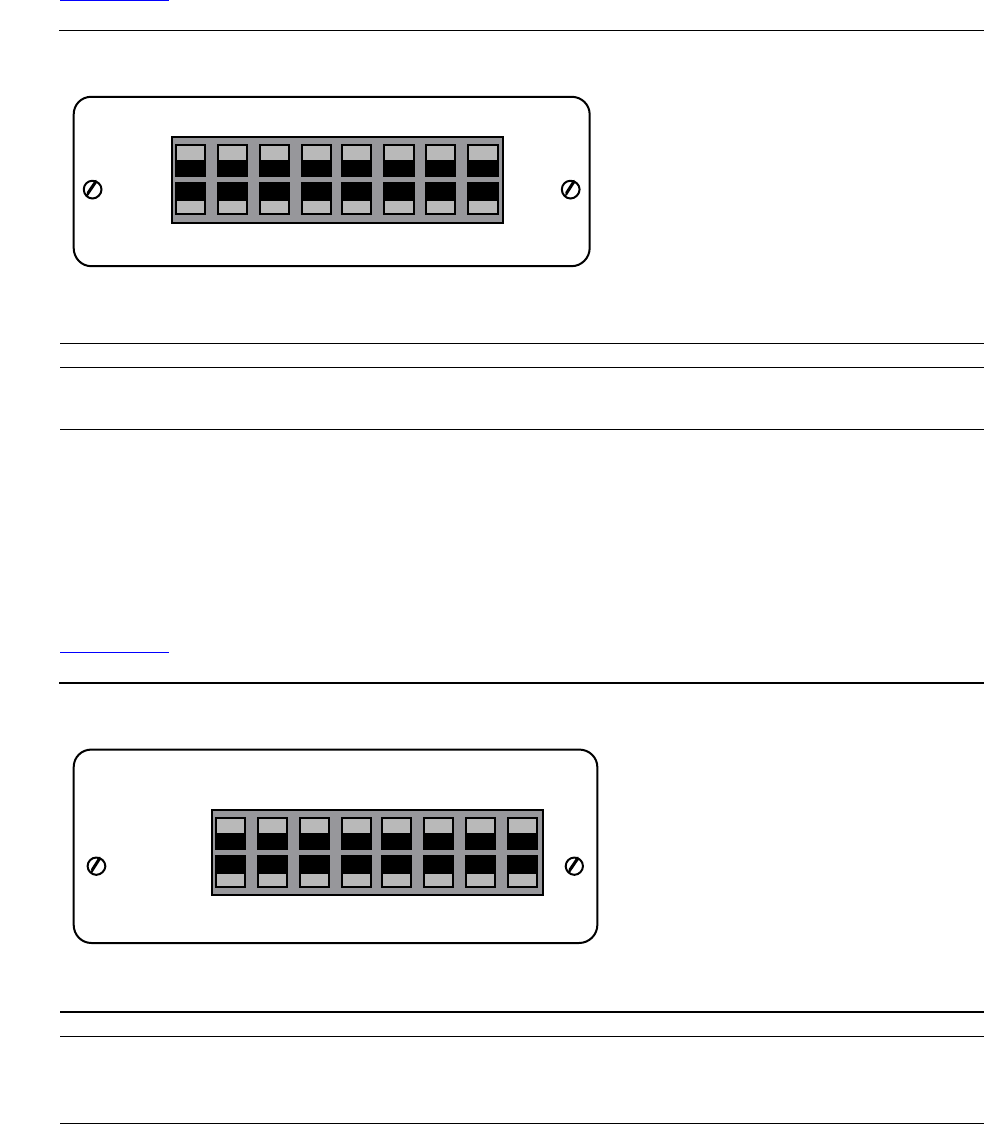

Figure 1-2
shows the panel of an RS-232 Asynchronous port module.
Asynchronous RS-232/20mA Current Loop Port Module
The Asynchronous RS-232/20mA Current Loop port module is a dual-mode port
module that provides 16 ports. Each port may be individually configured for RS-232 or
Current Loop. Each RS-232 port has a data-transfer rate of up to 115.2 Kbps. Each
Current Loop port has a data-transfer rate of up to 19.2 Kbps.
Figure 1-3
shows the panel of an RS-232/20mA Current Loop port module.
Figure 1-2. RS-232 Asynchronous Port Module
Note. The RS-232 Asynchronous port module is not designed to be connected to telephone
lines. Do not connect any of the ports of the Current Loop port module to a telephone line.
Figure 1-3. Asynchronous RS-232/20mA Current Loop Port Module
Note. The Async RS-232/20mA current Loop port module is not designed to be connected to
telephone lines. Do not connect any of the ports of the Current Loop port module to a
telephone line.
021CDT .CDD
ASYNC
RS232
12345678
9 10111213141516
065CDT .CDD
ASYNC
RS232/
20ma CURR
LOOP
12345678
9 10111213141516
