AWAN 3883/4/5 Access Server Installation and Support Guide

Introduction to the AWAN Access Server
AWAN 3883/4/5 Access Server Installation and Support Guide—424241-001
1-8
Model 3883-8, 3883-8R, 3883-16, and 3883-16R
Panel Indicators
The rear panel of models 3883-8, 3883-8R, 3883-16, and 3883-16R contain the various
connectors for network connections, power, and protection devices. The rear panel of
models 3883-16 and 3883-16R is shown in Figure 1-8.
Table 1-4
describes each component on the rear panel of models 3883-8, 3883-8R,
3883-16, and 3883-16R.
Table 1-3. Front Panel LEDs (Models 3883-8, 3883-8R, 3883-16, and 3883-16R)
Item Indicator Type Description
1 Power/Fault (PWR) This LED is illuminated (green) when AC power is present.
2 Activity (ACT) This LED flashes (green) to indicate normal Ethernet activity.
3 Port Status These LEDs are illuminated (green) when port output activity
is indicated. There are 8 port status indicators on models
3883-8 and 3883-8R and 16 port status indicators on models
3883-16 and 3883-16R.

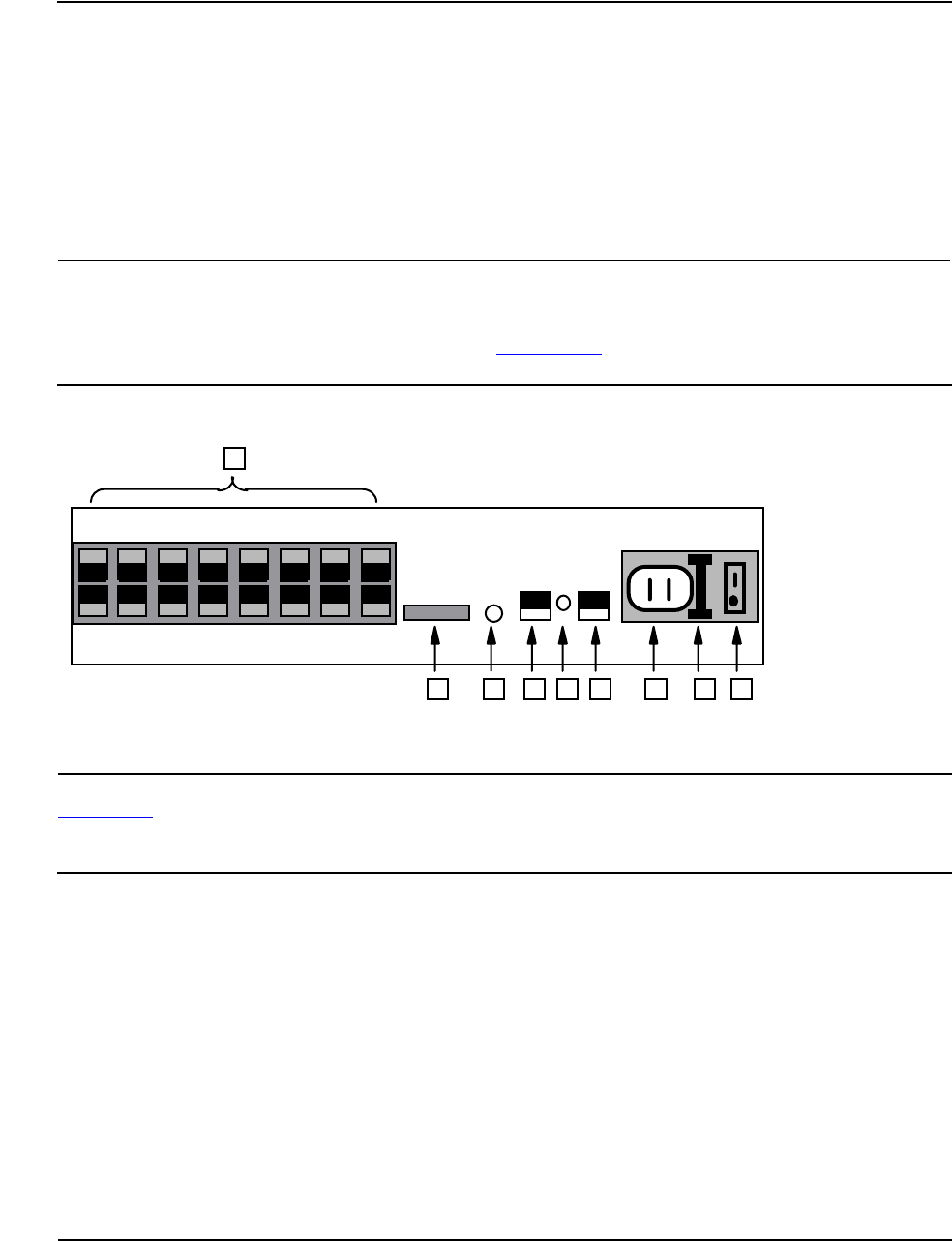

Figure 1-8. Model 3883-16 and 3883-16R Rear Panel
Table 1-4. Rear Panel Components (Models 3883-8, 3883-8R, 3883-16, and
3883-16R)
Item Component Description
1 Asynchronous Ports These are dedicated asynchronous ports. There are 8 ports
on models 3883-8 and 3883-8R and 16 ports on models
3883-16 and 3883-16R.
2 AUI Receptacle This is a 15-pin female connector used for the AUI network
interface (using a transceiver).
3 LED When illuminated (green), this LED indicates 10BaseT link
activity.
4 10BaseT Receptacle This is an autosensing receptacle to connect a 10BaseT
(twisted-pair) cable.
006CDT .CDD
1
2 3 4 5 6 7 8 9
12345678
9 10111213141516
