AWAN 3883/4/5 Access Server Installation and Support Guide

Introduction to the AWAN Access Server
AWAN 3883/4/5 Access Server Installation and Support Guide—424241-001
1-10
Model 3884 and 3884R Panel Indicators
The rear panel of models 3884 and 3884R contains the various connectors for network
connections, power, and protection devices. The rear panel of models 3884 and 3884R is
shown in Figure 1-10.
Table 1-6
describes each component on the rear panel of models 3884 and 3884R.

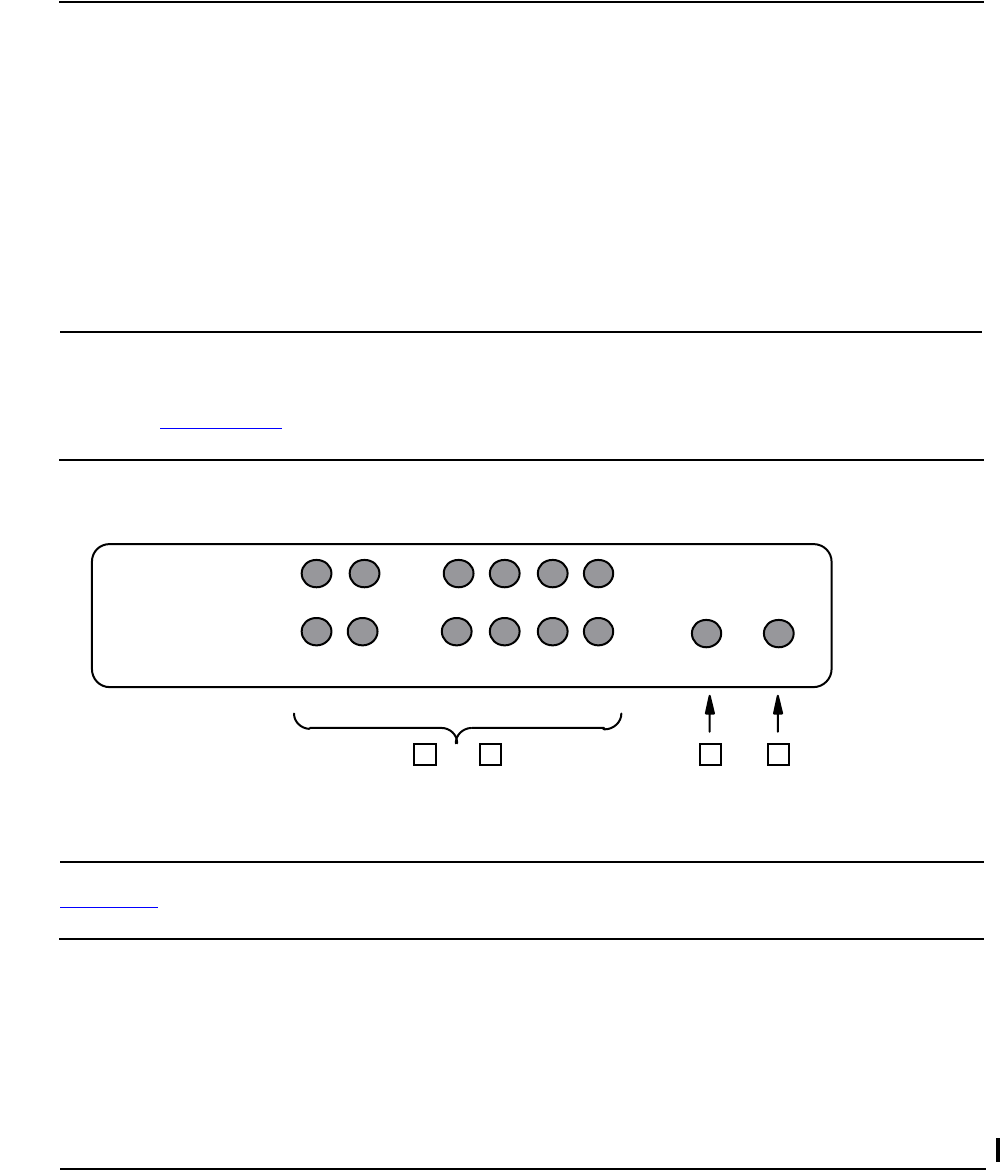

Table 1-5. Front Panel LEDs (Models 3884 and 3884R)
Item Indicator Type Description
1 Activity These LEDs flash when there is activity on the modules
indicated by the LED labels.
2 Fault These LEDs are illuminated when a fault occurs in the
module indicated by the LED label.
3 Power Supply This LED is illuminated when the power supply has been
turned on and AC power is present.
4 Ready This LED is illuminated when the runtime code has been
successfully loaded.
Figure 1-10. Model 3884 and 3884R Rear Panel
Table 1-6. Rear Panel Components (Models 3884 and 3884R)
Component Description
Link Modules (4) These are the link module slots. Four link module slots are provided.
The AUI/10BaseT link module is installed as link module 1. Link
module slots 2, 3, and 4 are reserved for future use.
Port Modules (2) These are the port module slots. Two port module slots are provided.
Port module slot 1 must contain a port module.
015CDT .CDD
ACTIVITY
FAULT
PM2 PM1 LM4 LM3 LM2 LM1 PS
31 2
READY
4
