Introduction to the AWAN Access Server

AWAN 3883/4/5 Access Server Installation and Support Guide—424241-001

1-12

Model 3885 and 3885R Panel Indicators

A partial view of the front panel of models 3885 and 3885R is shown in Figure 1-11.

Table 1-7

describes the LED indicators on the front panel of models 3885 and 3885R.

The rear panel of models 3885 and 3885R contains the various connectors for network

connections, power, and protection devices. The rear panel of models 3885 and 3885R is

shown in Figure 1-12

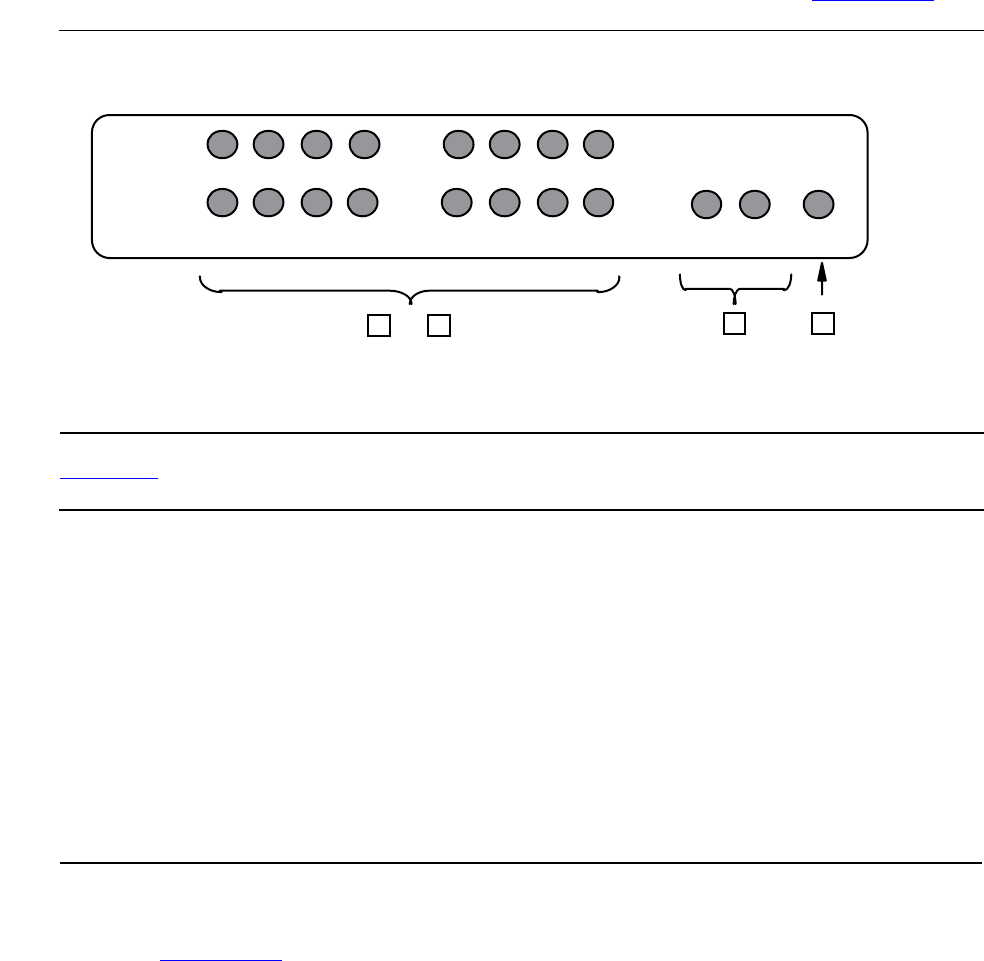

Figure 1-11. Model 3885/3885R Front Panel

Table 1-7. Front Panel LEDs (Models 3885 and 3885R)

Item Indicator Type Description

1 Activity These LEDs flash when there is activity on the modules

indicated by the LED labels.

2 Fault These LEDs are illuminated when a fault occurs in the

module indicated by the LED label.

3 Power Supply This LED is illuminated when the power supply has been

turned on and AC power is present. The PS2 power supply is

optional.

4 Ready This LED is illuminated when the runtime code has been

successfully loaded.

016CDT .CDD

1 2

ACTIVITY

FAULT

PM4 PM3 PM2 PM1 LM4 LM3 LM2 LM1 PS2 PS1 READY
