AWAN 3883/4/5 Access Server Installation and Support Guide

Introduction to the AWAN Access Server
AWAN 3883/4/5 Access Server Installation and Support Guide—424241-001
1-13
Model 3885 and 3885R Panel Indicators
Table 1-8 describes each component on the rear panel of models 3884 and 3884R.

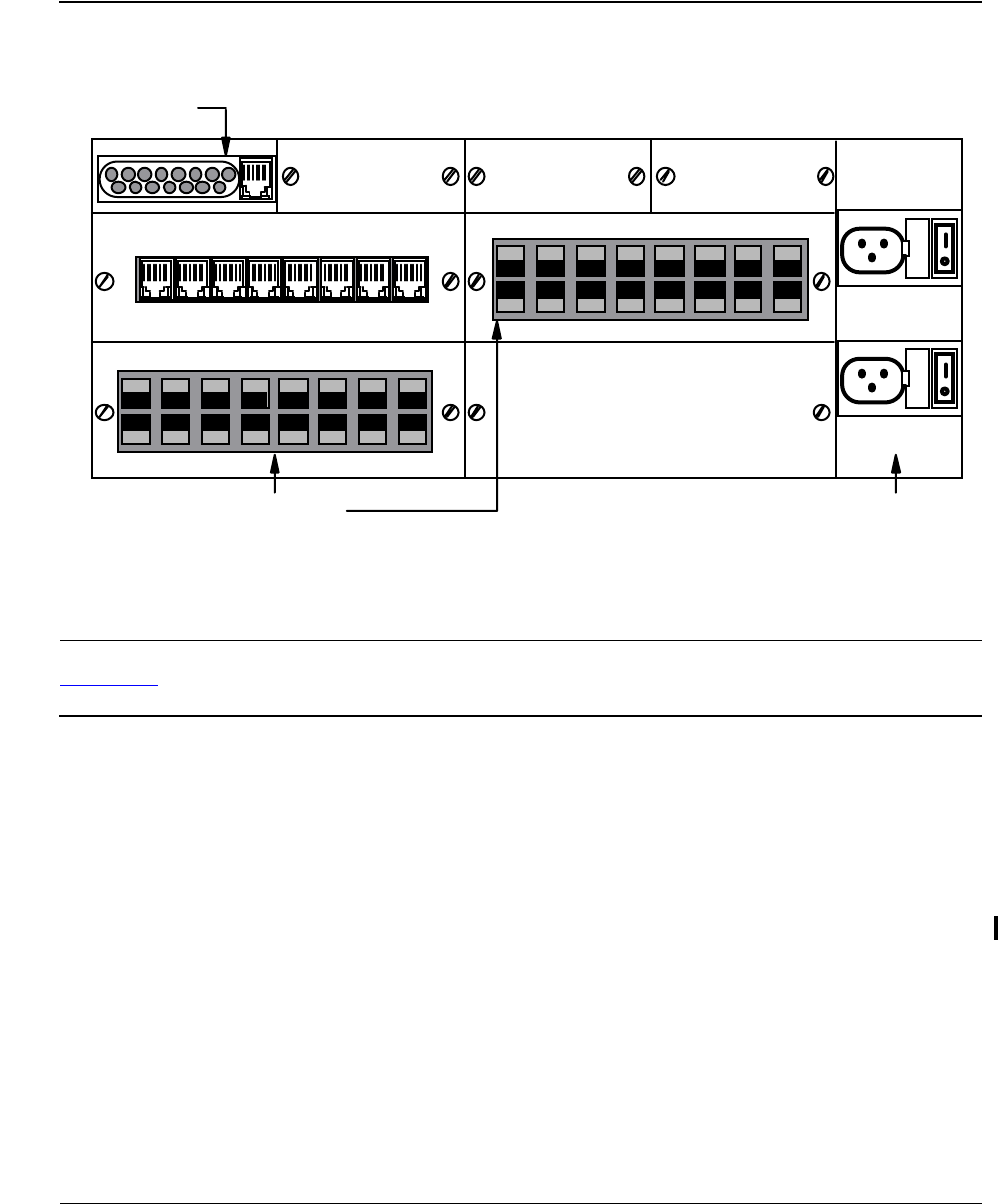

Figure 1-12. Model 3885 and 3885R Rear Panel
Table 1-8. Rear Panel Components (Models 3885 and 3885R)
Component Description
Link Modules (4) These are the link module slots. Four link module slots are provided.
The AUI/10BaseT link module is installed as link module 1. Link
module slots 2, 3, and 4 are reserved for future use.
Port Modules (4) These are the port module slots. Four port module slots are provided.
Port-module slot 1 must contain a port module.
Power Receptacle This is a grounded, three-wire receptacle for AC with an integral fuse
holder. It accepts the AC power cord supplied with the AWAN access
server. The model 3885/3885R has an optional power supply with a
power receptacle.
Fuse Holder This a fuse holder that uses an F1.6A 250 volt (5x20 mm) fast-blow
fuse. A compartment for a spare fuse is located in the holder.
On/Off Switch This is a rocker switch for turning AC power on and off. Press the
topside [|] of the switch to turn power on and the bottom side [O] of
the switch to turn power off.
018CDT .CDD
12345678
9 10111213 141516
12345678
9 10111213141516
Blank
Panel
Link
Module
Modem Port Module
RS232 Port
Modules
Dual Power
Supplies
123 45678
Blank Panel Blank Panel Blank Panel
