Introduction to the AWAN Access Server
AWAN 3883/4/5 Access Server Installation and Support Guide—424241-001
1-14
Console Port and Factory Configuration Button
Locations
Console Port and Factory Configuration Button
Locations
On models 3883-08 and 3883-16, including “R” models, the recessed Factory
Configuration button is located on the back panel.
On models 3884, 3884R, 3885, and 3885R, the console port and recessed Factory
Configuration button are located under the front panel bezel.
To access the console port or Factory Configuration button on AWAN models 3884-xx
and 3885-xx, position the AWAN access server with the front facing you and pull
forward on the bottom of the bezel. The bezel will snap off the chassis shell. With the
bezel removed, the AWAN access server appears as shown in Figure 1-13.
Note. Depending on your 3883-xx unit, the Factory Config button might be mislabeled as
“Reset.” The button’s function, however, is the same as for Factory Configuration: It is used to
reset the AWAN access server to the factory default configuration at power up time.

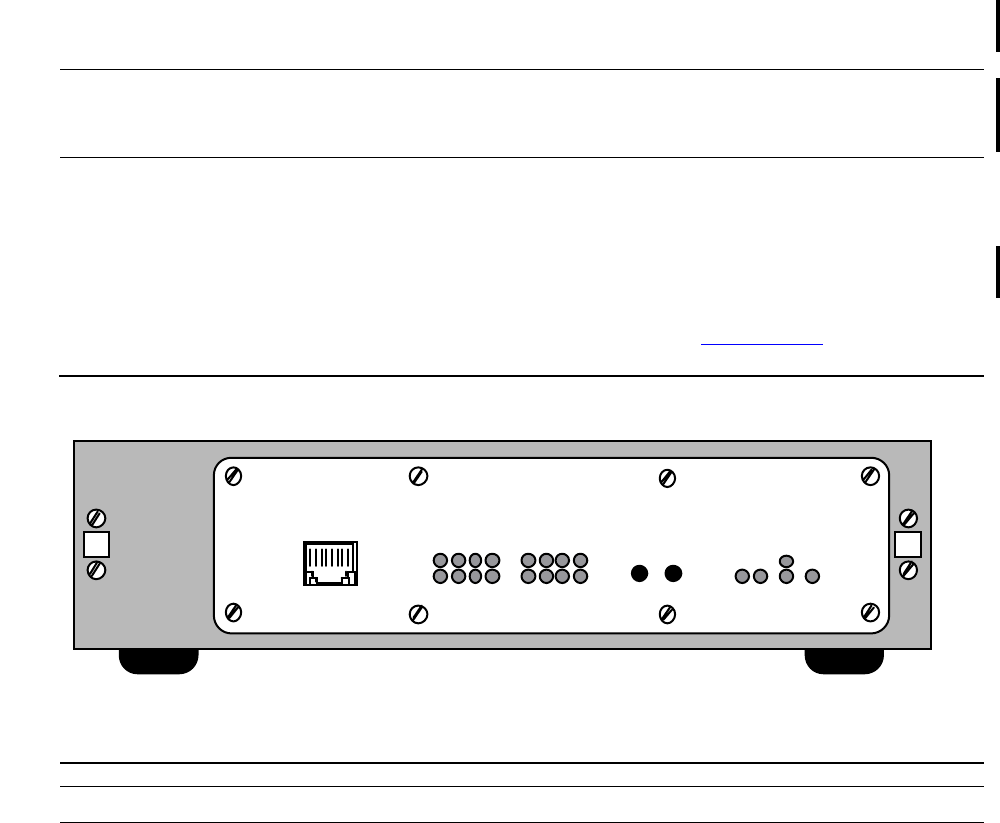

Figure 1-13. Model 3884, 3884R, 3885, or 3885R With Bezel Removed
Note. The rightmost button labeled RESET is not normally used.
CONSOLE
CDT025.CDD
RESET
FACTORY
CONFIG
