TINET Multipoint Supervisor Protocol
Envoy Application Programming Manual—427159-001
8-29
WRITE Operation
WRITE Operation

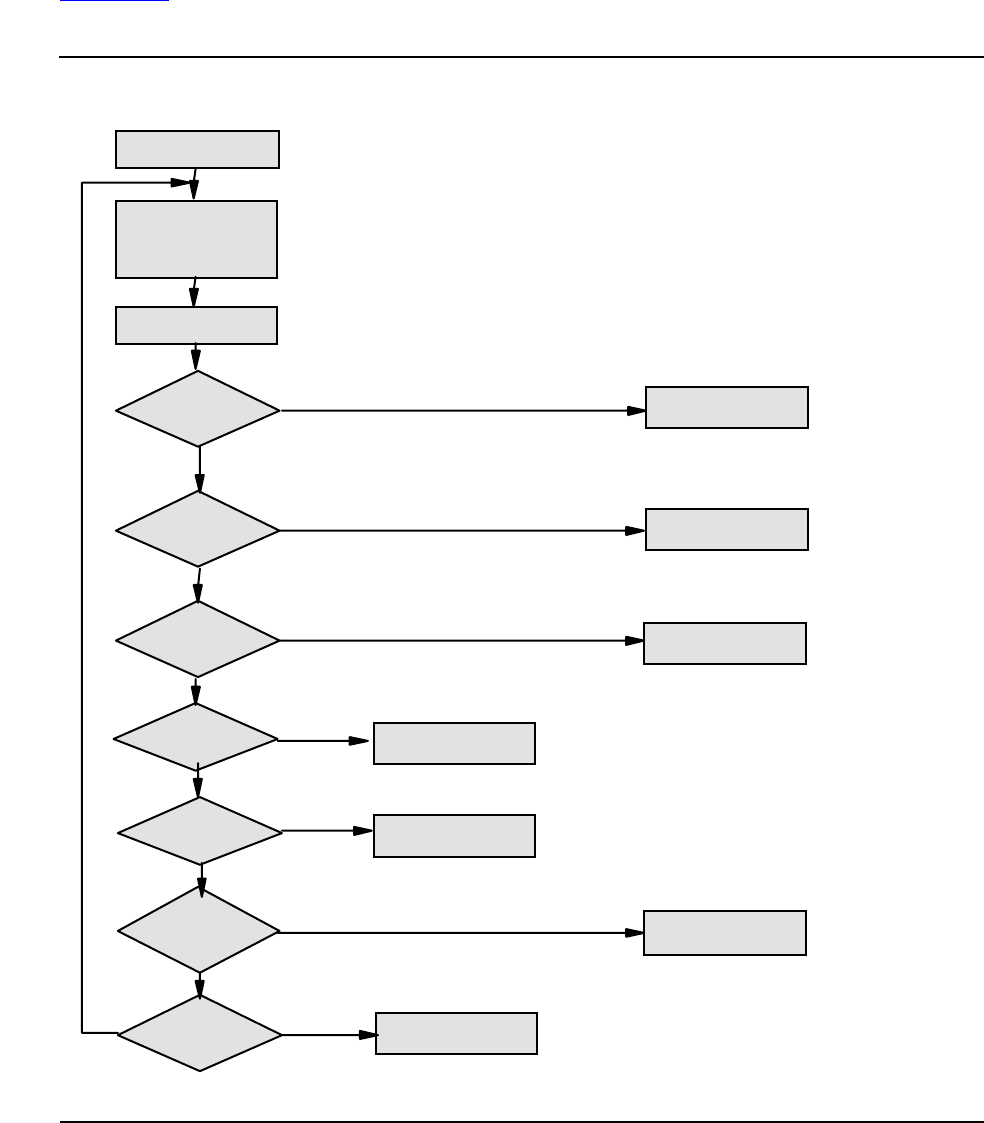

Figure 8-7 shows the action of the supervisor station in response to line conditions on a
WRITE.
Figure 8-7. TINET Multipoint Supervisor WRITE
052CDT .CDD
No
Send Select
Sequence and
Message
CALL WRITE...
Wait for Response
No
Text with
Error?
No
Response?
No
Text
Overrun?
Yes
Error = 177
Error = 171
Error = 161
Timeout?
Error = 162
Yes
Yes
No
No
EOT
Received?
Protocol
Error?
No
Yes
Error = 172
ENQ
Received?
Yes
Error = 0
Yes
Yes
Error = 166
No
