Application Programming With Envoy
Envoy Application Programming Manual—427159-001
1-3
Envoy Subsystem Architecture
Envoy Subsystem Architecture
An Envoy subsystem consists of the following:
•
Envoy I/O communications module
•
Protocol and driver modules
•
Physical line
The I/O communications process serves as the interface to the file-system and
management applications for the different communications lines. The driver process
handles the physical I/O for the asynchronous and synchronous lines while the protocol
process handles the logic for the different types of protocols, such as message formatting
and flow control.
Figure 1-2
shows the architecture of the Envoy subsystem and the relationship of its
components.

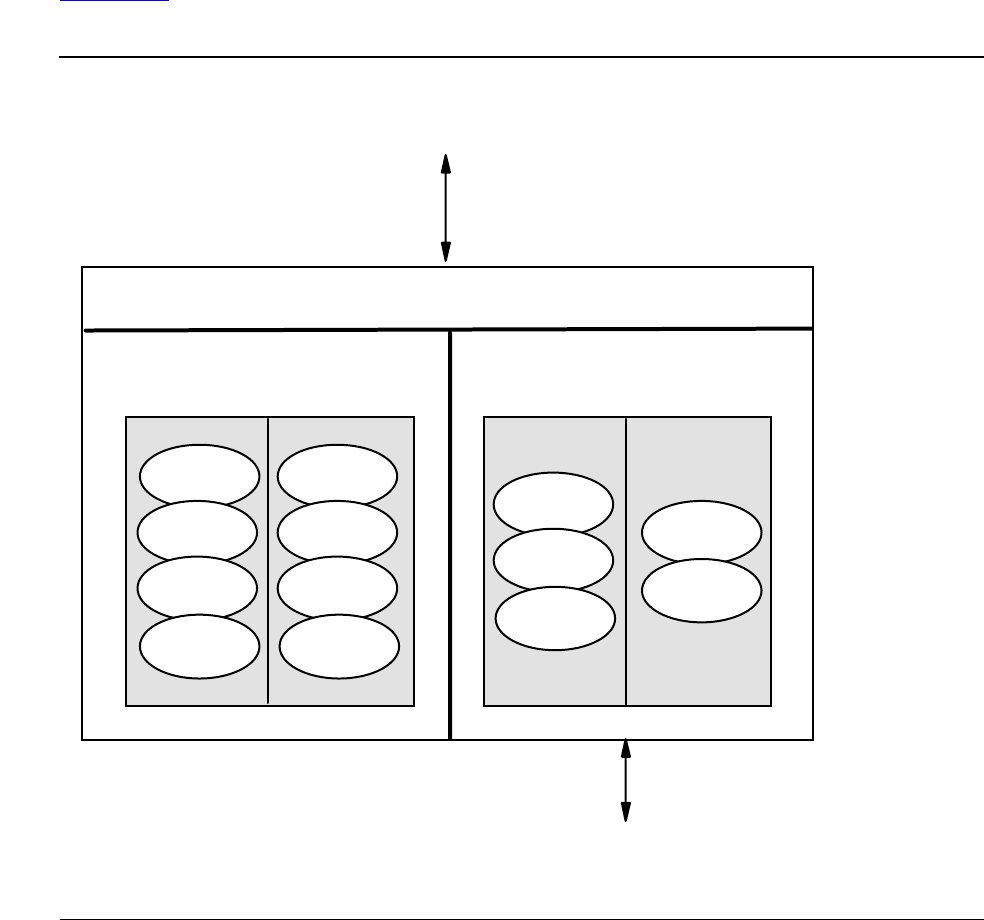

Figure 1-2. Envoy Subsystem Architecture
004CDT .CDD
Applications
Envoy I/O Communication Process
DriversProtocols
ASYNCBISYNCASYNC BISYNC
BISYNC
ASYNC
TINET
Burroughs
SIMPLEX
FDX
SWIFT
ADM2
Burroughs
ADM2
ASYNC
BISYNC
FDX
Physical Line
