Writing a Command-Interpreter Monitor ($CMON)

Guardian Programmer’s Guide — 421922-014

23 - 2

Communicating With TACL Processes

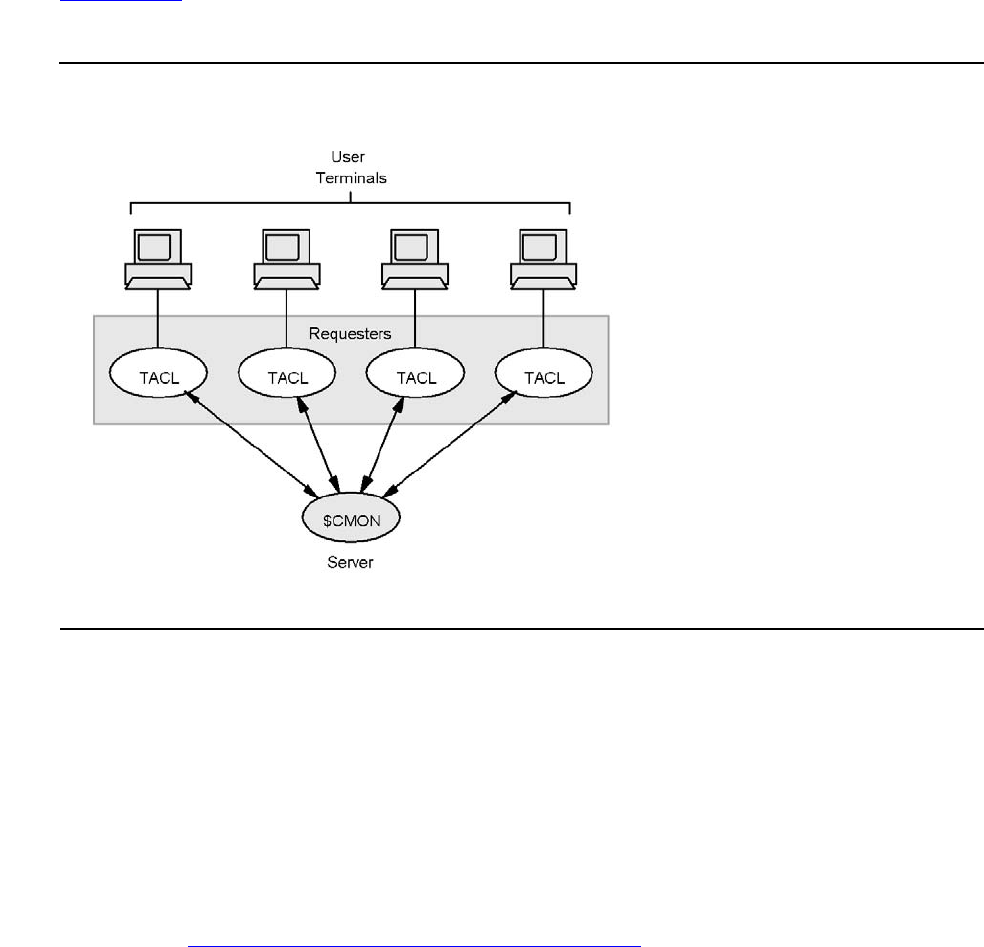

Figure 23-1 shows the relationships between the $CMON process and the TACL

processes.

Each TACL process opens the $CMON process the first time that it receives a

command that causes a request to be sent to $CMON. If, for any reason, the TACL

process is unable to open the $CMON process, then the command-interpreter process

goes ahead and processes the command as if $CMON had accepted the request.

Once the TACL process has $CMON open, it communicates with $CMON as any

equester process communicates with a server process. On receipt of an ALTPRI,

LOGOFF, LOGON, or implicit or explicit RUN command, the TACL process sends the

appropriate command-interpreter message to the $CMON process. The $CMON

process reads the message from its $RECEIVE file using a call to the READUPDATE

procedure. Section

6, Communicating With Processes, provides details of reading

messages from $RECEIVE.

Figure 23-1. Relationships Between TACL Processes and $CMON

VST113.VSD
