Fault-Tolerant Programming in C

Guardian Programmer’s Guide — 421922-014

27 - 14

Updating Control State Information

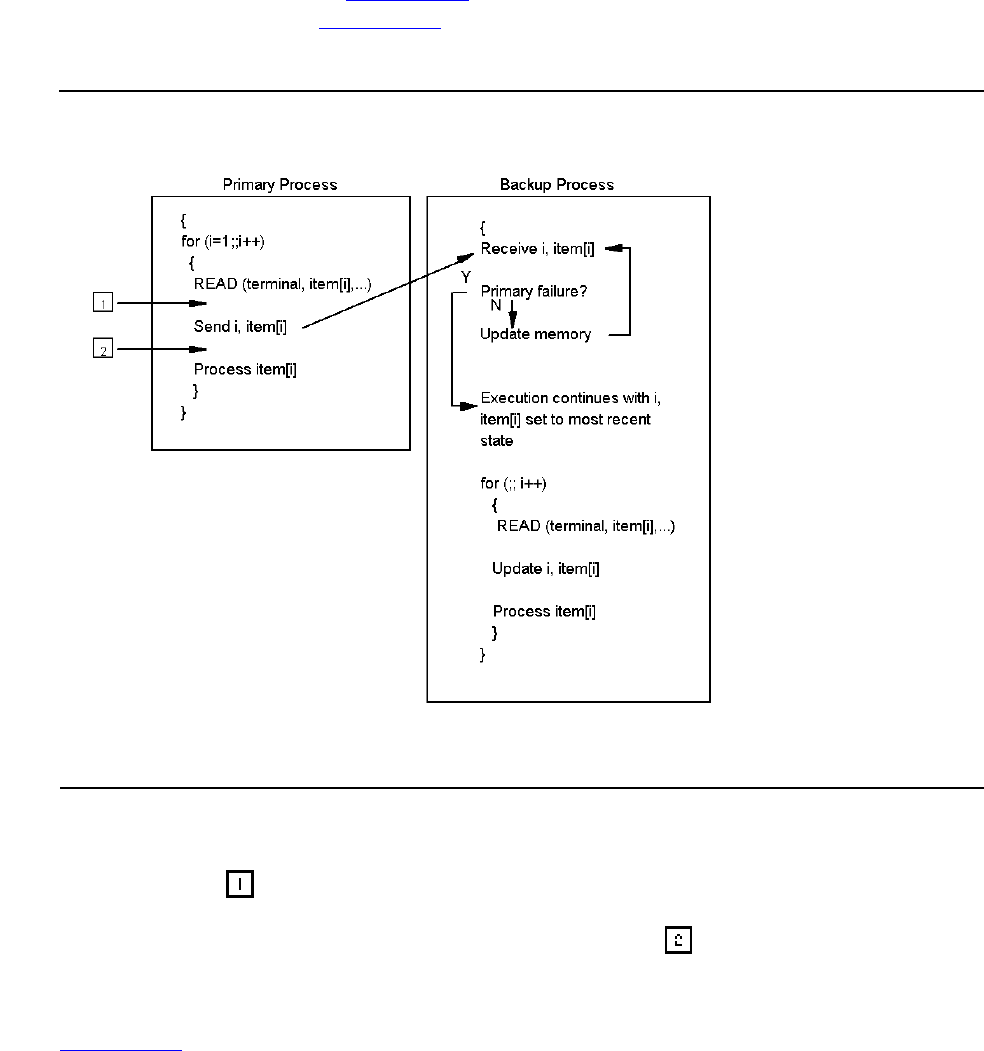

Control state information is used by the backup process to determine where to take

over execution from the primary process. In many cases, a single scalar value is

sufficient. For example, in Figure 27-3, a simple loop reads data from a terminal and

processes it. (Note that Figure 27-3 is conceptual and does not use actual C language

statements.)

The loop counter, i, is used to determine where to resume execution in the backup

process. The update point is placed immediately after the READ. Suppose a failure

occurs at point

when i = 5. The backup process then continues execution at the

previous continuation point, for which i = 4. item[4] is processed and the user must

reenter item[5]. Now suppose the failure occurs at point while i = 5. The backup

process resumes at the just-defined continuation point, processes item[5], then loops

to read item[6]; in this case, the failure is transparent to the user.

Figure

27-4 shows another example of updating control state. In this example, the

value of a switch is sent to the backup process. There, in the event of a takeover, the

switch determines where processing is to continue by selecting the appropriate case.

Figure 27-3. Control State Example

VST134.VSD
