Fault-Tolerant Programming in C

Guardian Programmer’s Guide — 421922-014

27 - 15

Updating File State Information

During application processing, I/O operations might be performed. At certain points in

the program, the primary process must obtain file state information and send it to the

backup. File state information includes file pointers and file synchronization

information. File buffers are not included in the file state; they are included in the

application state.

Synchronizing File Operations

File synchronization information is used by the server to determine whether an

operation by a backup process after a failure of its primary process is a new operation

or a retry of an operation just performed by the primary process. The information

allows the server to ensure that no write operation is duplicated when a backup

process takes over from its primary process. File synchronization information is

contained in a file’s sync block, which can be sent to the backup process at the update

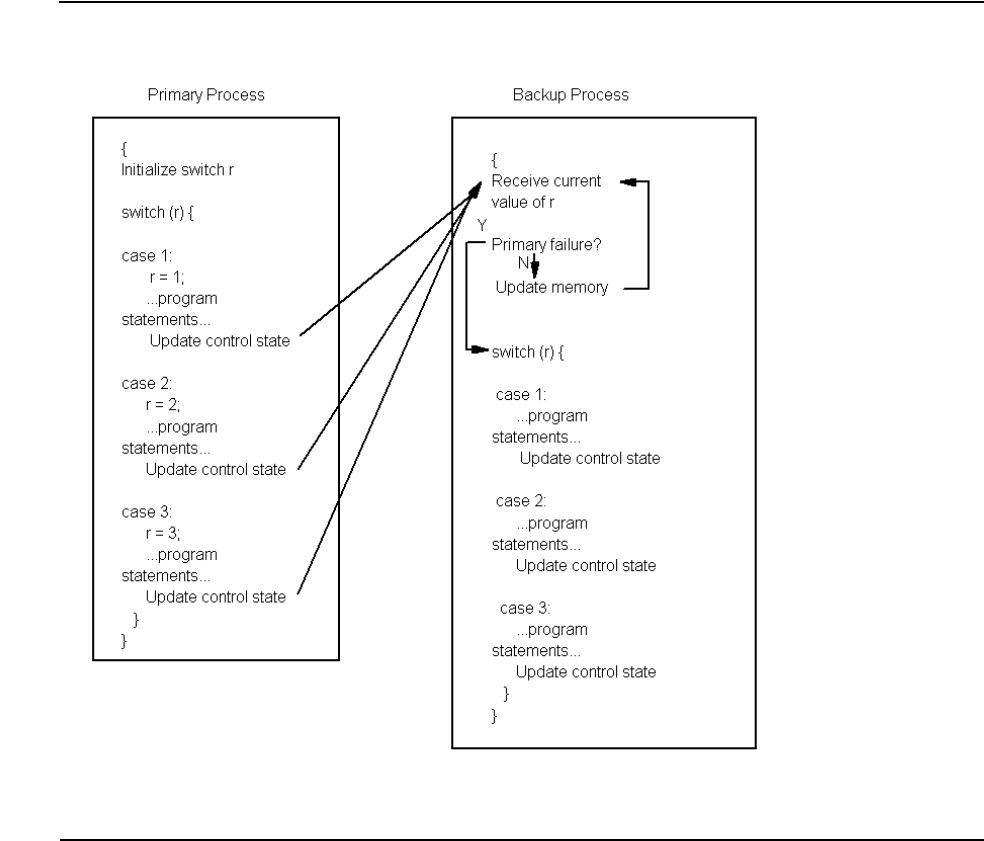

Figure 27-4. Using Switch Statement to Determine the Continuation Point

VST135.VSD
