Communicating With Disk Files

Guardian Programmer’s Guide — 421922-014

5 - 34

Monitoring Writes to a Disk File

Using the CONTROL 27 Operation

To find out whether a write operation might have taken place, you issue the

CONTROL 27 operation against a file number that is open for nowait I/O. When a

write occurs against any open on this file, the corresponding call to the AWAITIO

procedure returns. Note that adding a record to the file is not the only reason why the

CONTROL operation might finish; for example, a write operation that occurs as a result

of a backing out a transaction will also complete the CONTROL operation.

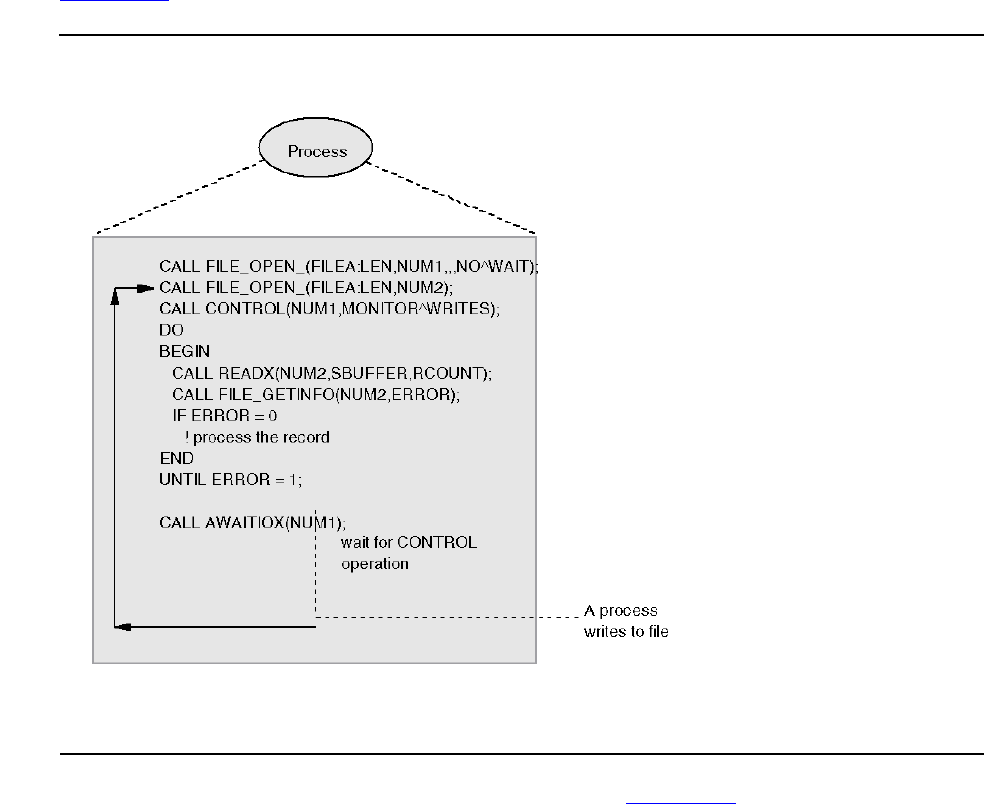

Figure 5-5 shows how CONTROL operation 27 is typically used.

The following sequence explains how the example in Figure 5-5 works:

1. The first FILE_OPEN_ call opens the file for nowait I/O, with a sync-depth of 0.

2. The second FILE_OPEN_ call opens the file again, this time for waited I/O.

3. The CONTROL 27 operation is issued against the file number returned by the

nowait open; the CONTROL operation returns immediately.

Figure 5-5. Monitoring Write Operations on a Disk File

VST124.VSD
