Using the Sequential Input/Output Procedures

Guardian Programmer’s Guide — 421922-014

15 - 9

Setting Up the SIO Data Structures

To access files across the network, you need to include the network number in the file

name. Indicate a network number by putting a backslash (\) in the first byte and the

system number in the second byte. The dollar sign ($) that normally starts the volume,

process, or device name is then omitted, leaving 6 bytes to identify the volume,

process, or device. This is one byte less than can be used for local names.

To obtain a system number, you use the LOCATESYSTEM procedure.

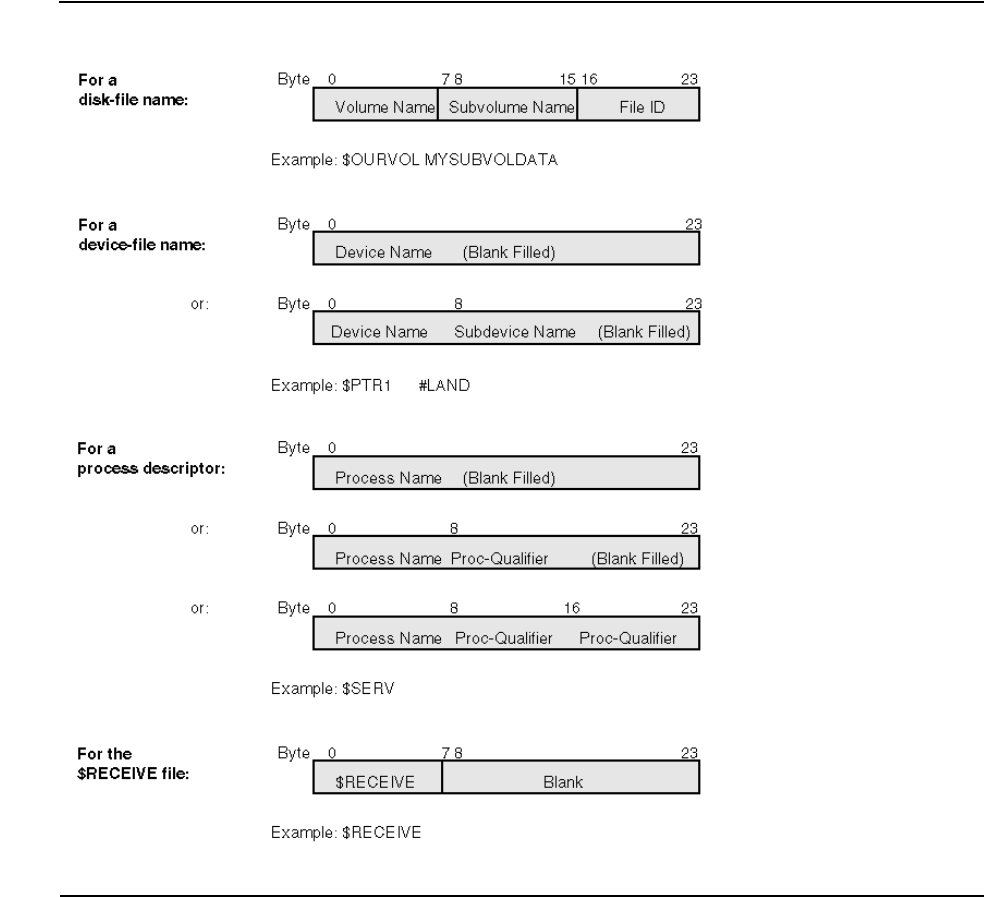

Figure 15-1. File-Name Conventions for SIO File

VST069.VSD
