Unpacking the Tape Library
L700 (CTL700) Installation and User’s Guide—527338-008
2-9
Unpacking the Tape Library Interior
5. Raise the Z carriage assembly to waist level as shown in Figure 2-7.
6. Remove and discard the foam packing material from inside the assembly.

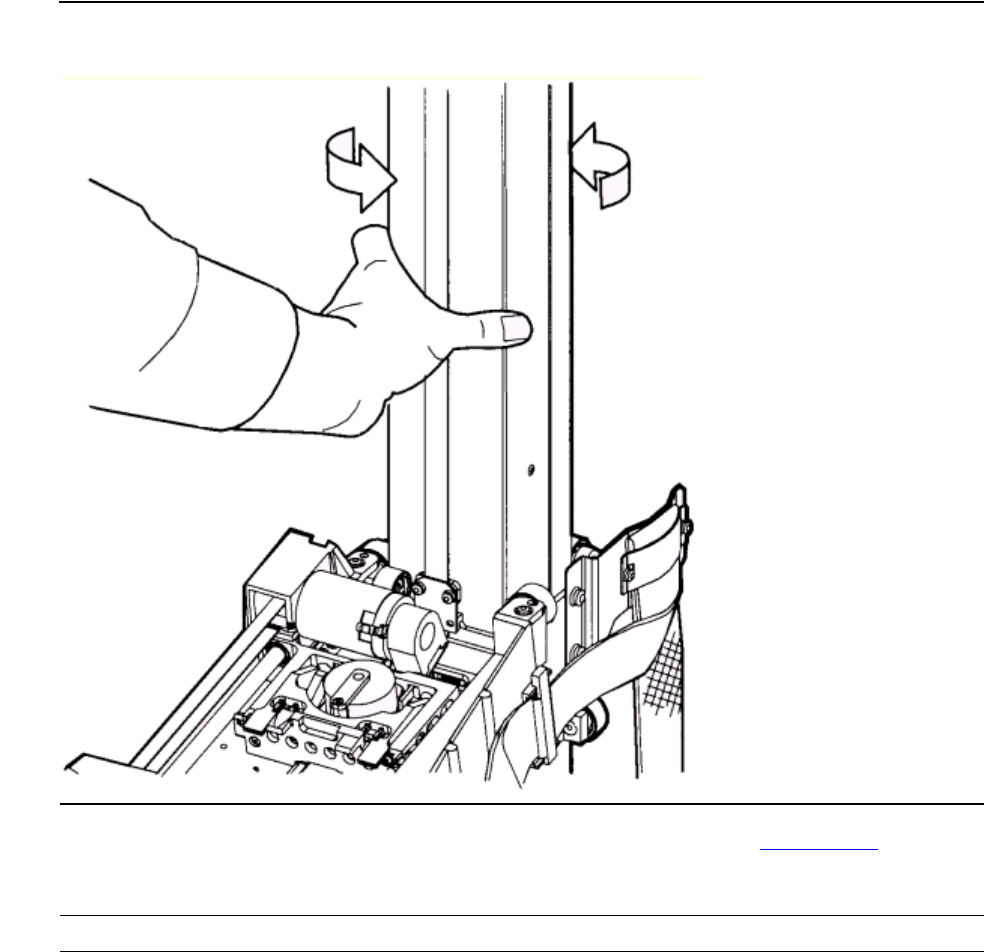

Figure 2-6. Z Column Movement
Note. Make sure the assembly is left in the fully retracted position.
