Installing and Configuring the ACL Tape Drive for the
NonStop S-Series Server
N1526A and N1527A ACL Tape Drive Installation and User’s Guide—542756-003
3-2
Installation
4. Connect the 68-pin to 68-pin SCSI cable to the top SCSI port on the SCSI
Converter card. See Figure 3-3.
5. Connect the other end of the SCSI cable to a supported SCSI port on the server.
You can attach the tape drive to a NonStop S-series server using one of the
following:
•
ServerNet/DA
•
IOMF2 CRU
•
PMF CRU

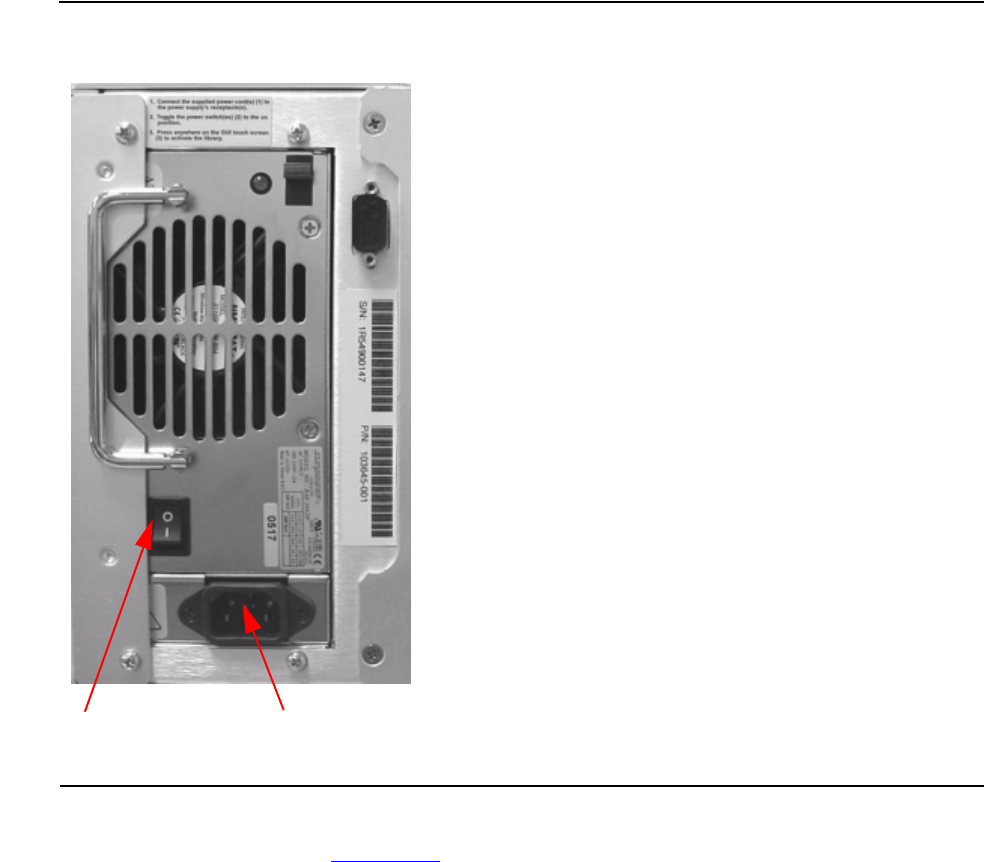

Figure 3-1. View of Power Switch and Power Receptacle
Power Switch AC Power Receptacle
