Moni
tor and Alerts. If the user clicks on a node in the tree on the left side, Monitor is
automatically selected and a context-sensitive status table is shown. For example, if a
particular cluster is selected, the table will list all the servers in the cluster. Each server
will be listed on a separate row. The columns represent server name, group name, and
entity names. All the names and status icons can be clicked on, and the tree will be
expanded to that level accordingly. This status table serves as a drill-down tool to
pinpoint the problem efficiently, while providing a higher-level overall picture.

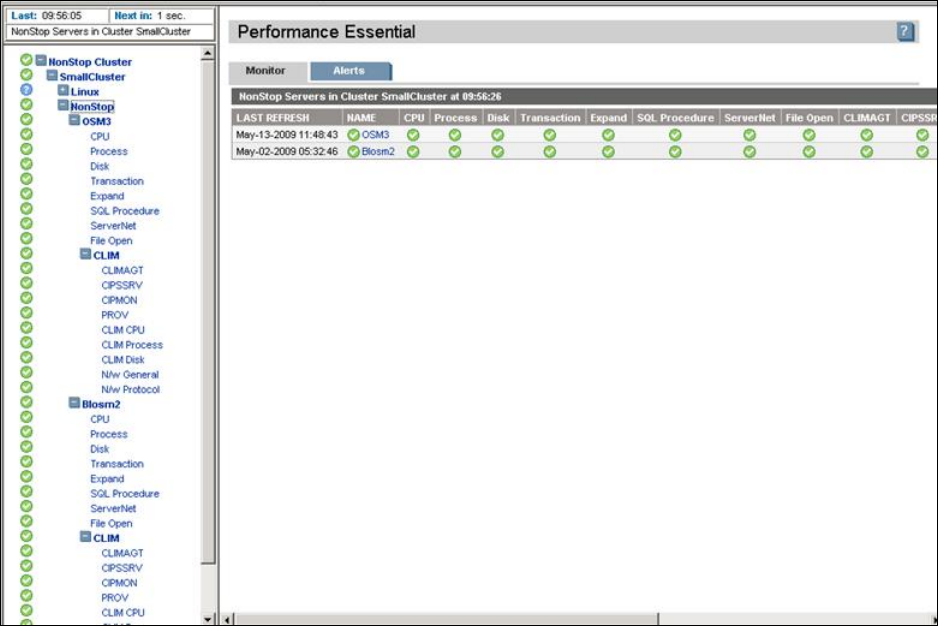

Figure 7 – Monitor table
