Terms and Concepts
HP NonStop S-Series Planning and Configuration Guide—523303-015
1-11

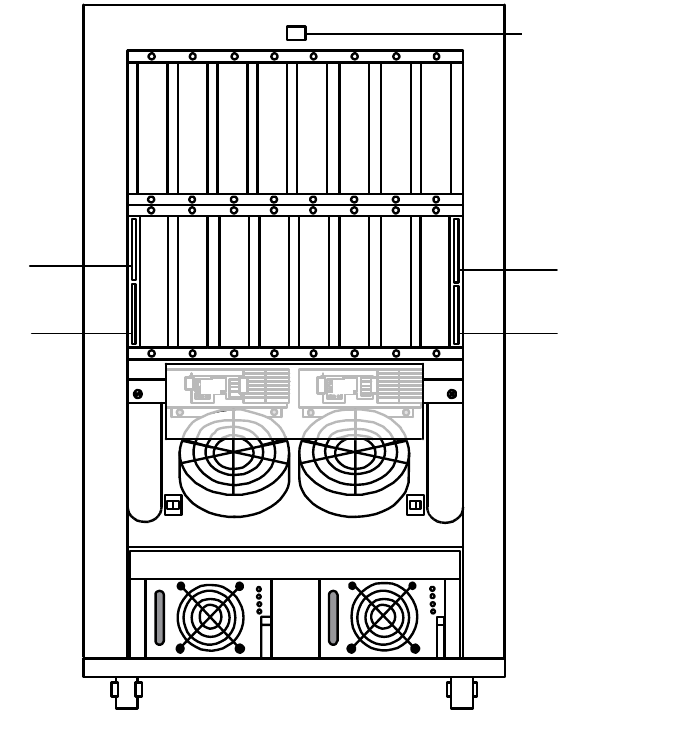

Components, Processor Enclosure With Power
Shelf, Appearance Side
Components, Processor Enclosure With Power Shelf,
Appearance Side
Slot Component
01 through 08 Disk
11 through 18 Disk
09, 10, 19, 20 SCSI terminator
21, 22 PMCU
23, 28 Battery
24, 27 Group ID switch
25, 26 Fan
29, 30 Reserved
31, 32 Power supply
VST622.vsd
09
10
19
20
23
24
25 26
27
28
01 02 03 04 05 06 07 08
1811 12 13 14 15 16 17
29 30
31
32
21
22
Group Service LED
