Expanding a System Online
HP NonStop S-Series System Expansion and Reduction Guide—522465-009
6-29
21. Cable Block to Target System
After applying power to the enclosures, if the LEDs on a PMF CRU or IOMF CRU
remain unlit, see CRU Does Not Start on page 7-6.
21. Cable Block to Target System
21.1 Install Components on Target System If Necessary
The target system might require components such as extra SEBs or MSEBs to
accommodate the block you are adding. Install these components now.

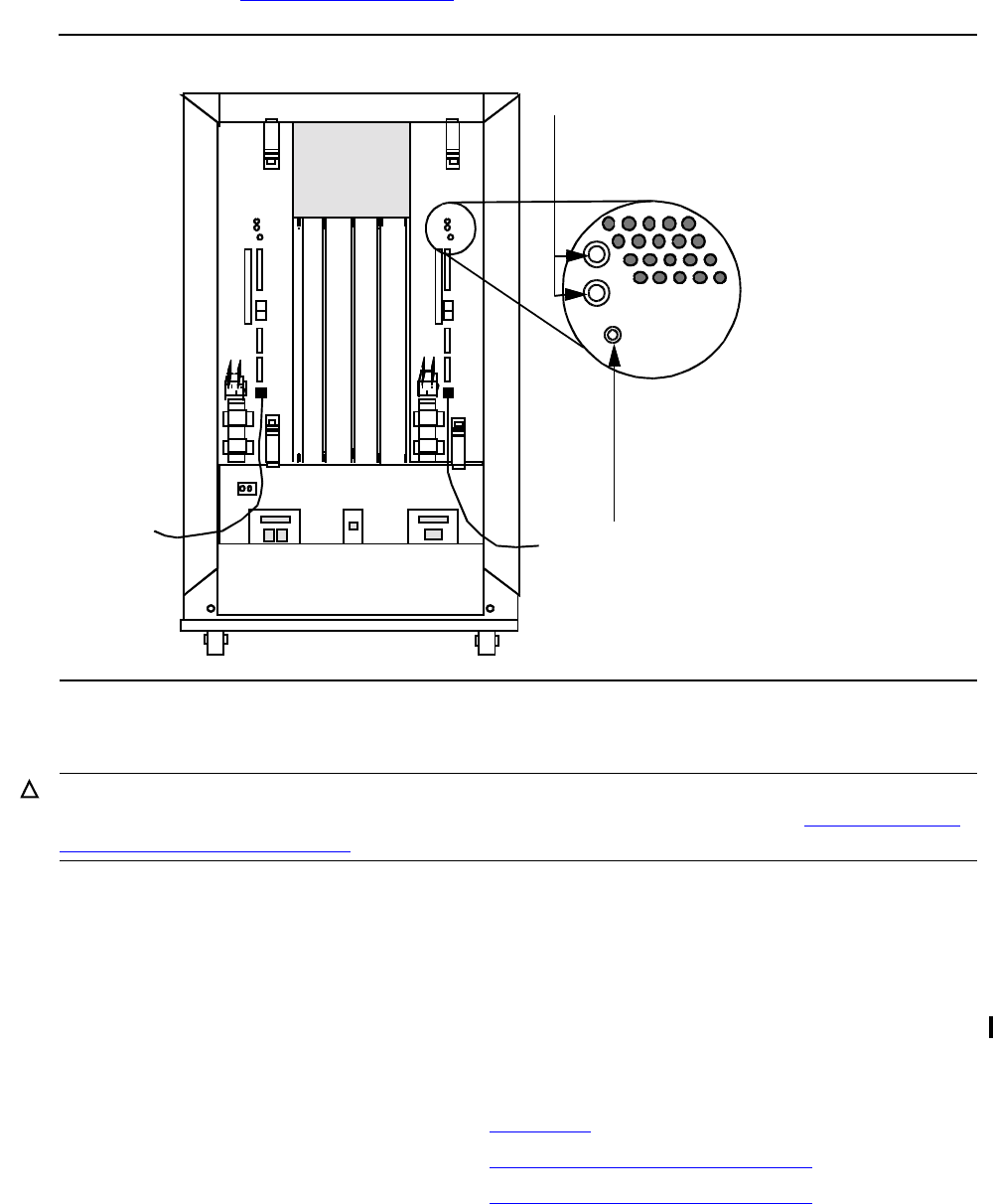

Figure 6-5. PMF/IOMF CRU Power On Button
Cautions. After the AC power cord on the target system or any enclosure in the block is
connected to an AC power source, do not unplug and replug it. If you do, see AC Power Cord
Was Unplugged or Replugged on page 7-2.
For Information About See
Which components your system requires NonStop S-Series Planning and Configuration
Guide
Installing most system components CSSI Web
on page xiii
Installing SEBs or MSEBs Guided Replacement Procedures
on page xiv
Installing 6760 ServerNet/DAs Guided Replacement Procedures
on page xiv
Installing ServerNet adapters other than
the 6760 ServerNet/DA
The manual that discusses that adapter
System
Enclosure
(Service Side)
POWER
ON
Status LEDs
Power-On
Button
VST108.vsd
