Troubleshooting
HP NonStop S-Series System Expansion and Reduction Guide—522465-009
7-3
Added Enclosure Does Not Power On
Added Enclosure Does Not Power On
Not all enclosures in the added block powered on after you pressed the power-on
button, possibly from Step 9. Power On Enclosure on page 6-17.
Cause and Recovery
Cause Recovery
AC power cords are
unplugged.
See AC Power Cord Was Unplugged or Replugged
on page 7-2.
Power-on cables are
disconnected.
Figure 7-1
shows the location of the power-on cables.
The NonStop S-Series Hardware Installation and FastPath Guide
describes the procedure for adding power-on cables between
enclosures.
When you add power-on cables to enclosures, each enclosure
must have a way to send the power-on signal to the next
enclosure.
After you verify the power-on cabling, press power-on buttons
again in all nonfunctional PMF CRUs and IOMF CRUs. Return to
Step 9. Power On Enclosure
on page 6-17.

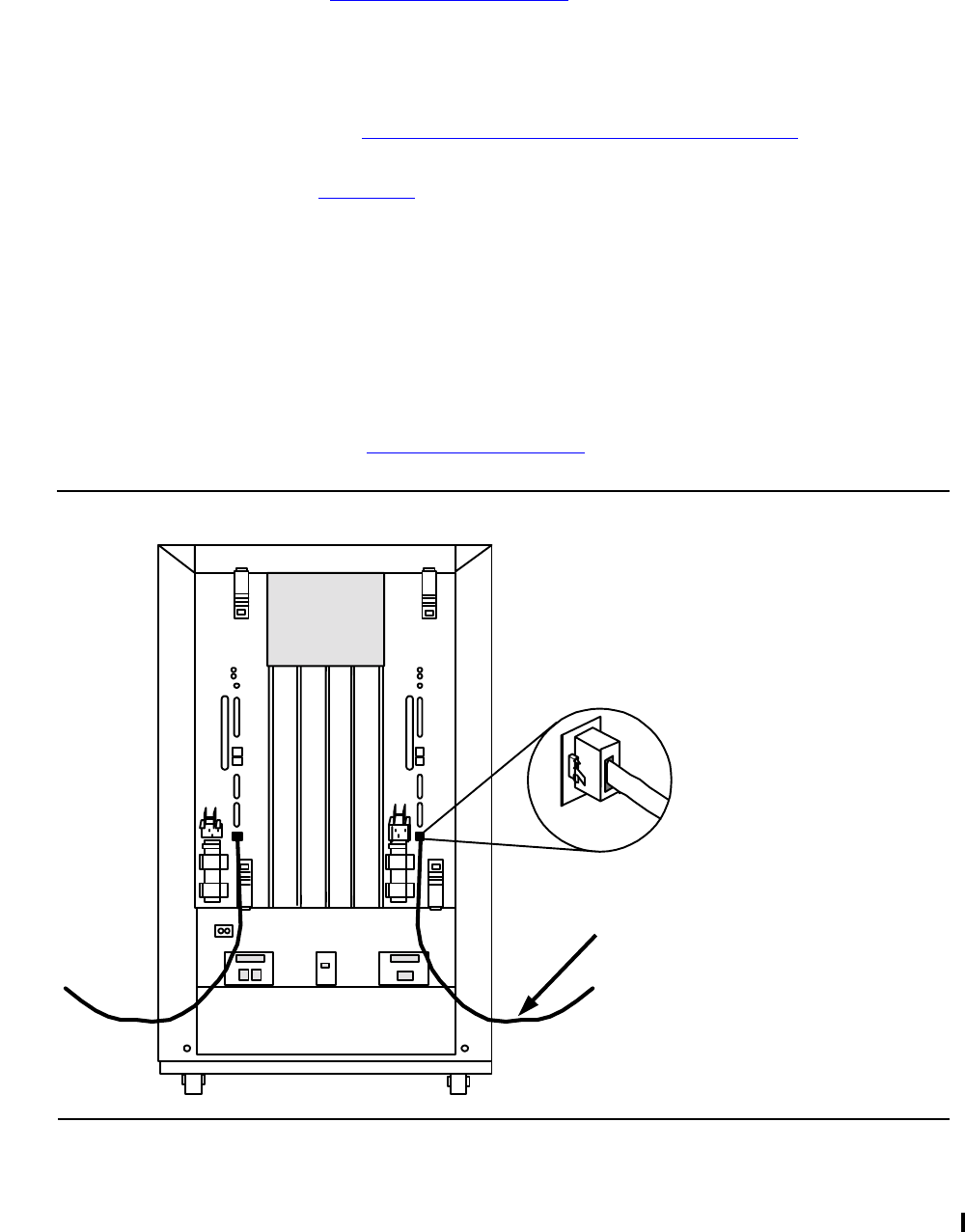

Figure 7-1. PMF/IOMF CRU Power-On Cables
RJ-11
Connector
Power-On Cable
VST115.vsd
