Troubleshooting
HP NonStop S-Series System Expansion and Reduction Guide—522465-009
7-8
Ping Command Does Not Work
4. If these values differ, change the IP address of the system console:
a. Click Start > Settings > Control Panel.
b. Double-click the Network icon.
c. Click the Protocols tab.
d. Select TCP/IP Protocol.
e. Click Properties.
f. In the dialog box, click the IP Address tab.
g. If necessary, click Specify an IP address.
h. Change the IP Address, Subnet Mask, and Default Gateway fields:
•
IP address: specify a valid IP address not currently used in the network.
Factory-assigned default IP addresses appear in the following figure.
•
Subnet Mask: the Subnet Mask entry from Worksheet 7.
•
Default Gateway: the Gateway Route entry from Worksheet 7.
i. Click OK.
j. Click Close.
5. Restart the system console.

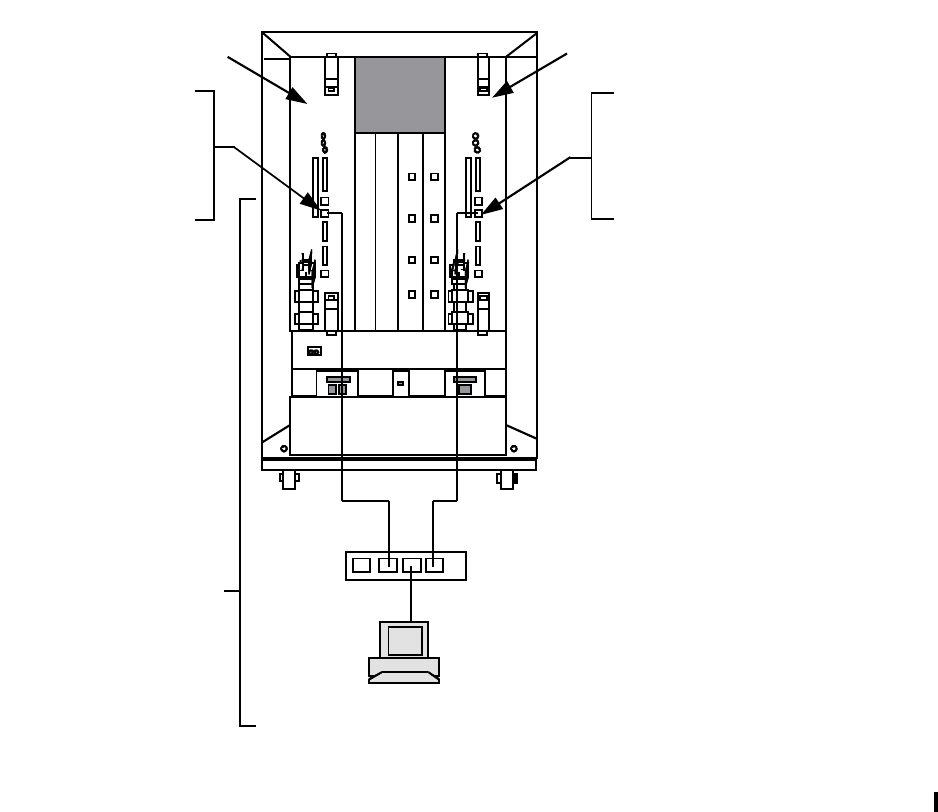

Group 01
Ethernet
Microhub
Dedicated LAN
MSP0:
192.231.36.2
Operating System Access
Using $ZTCP0:
192.231.36.10
MSP1:
192.231.36.3
Operating System Access
Using $ZTCP1:
192.231.36.11
Processor 0
Processor 1
VST905.vsd
Primary System Console
192.231.36.1
