NonStop S-Series System Expansion and Reduction Guide

ServerNet Worksheet: Tetra 8 Topology, X and Y Fabrics
Worksheet 9
With a highlighter, shade the enclosures, ports, and slot numbers that are in use in your current configuration.
With a pen, black out the enclosure you plan to remove.

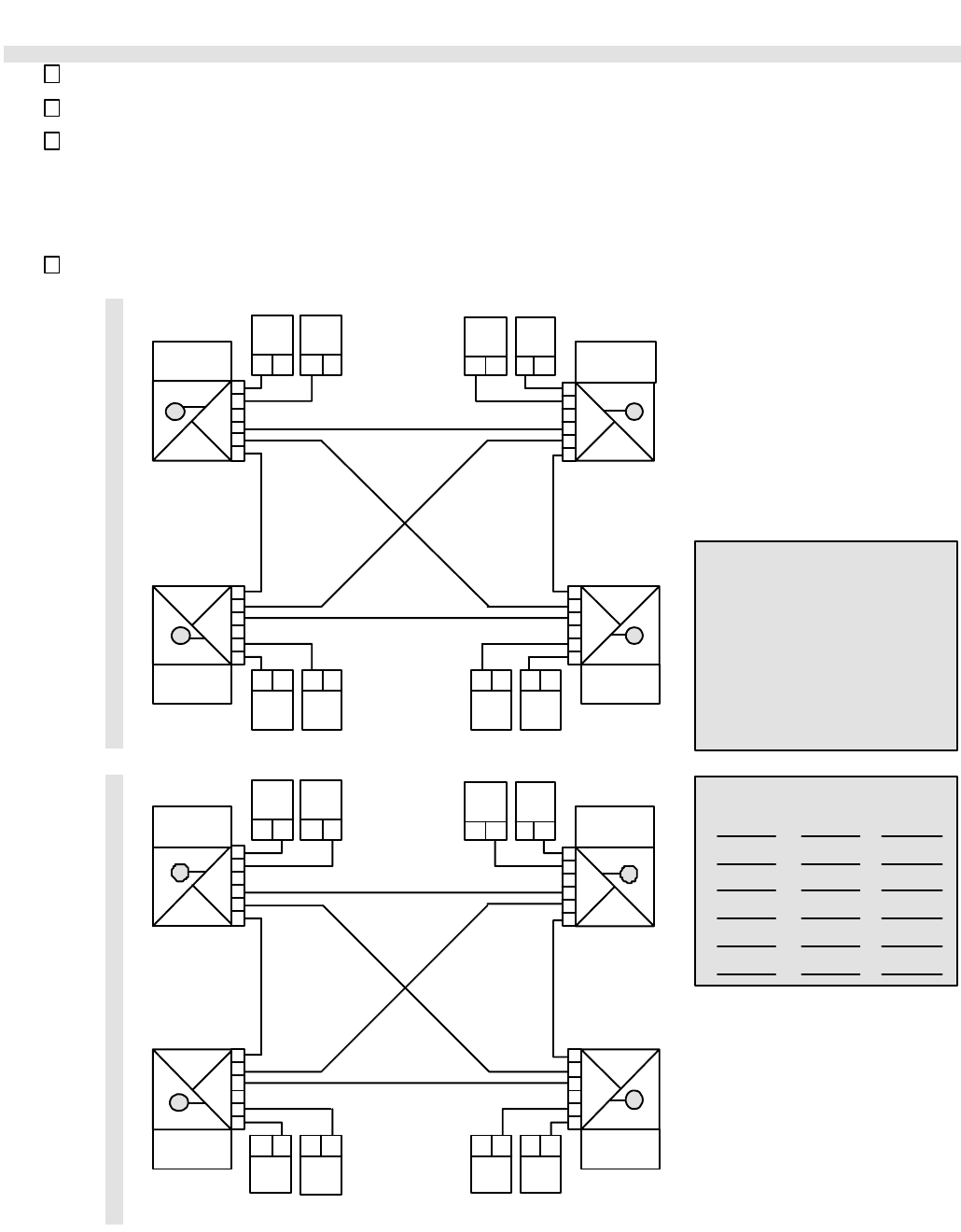

Starting from the central “X” in this figure (representing the tetrahedral topology for the system), trace
all ServerNet cables to the ServerNet expansion boards (SEBs) or modular SEBs (MSEBs) in the processor
enclosures, and trace through all those SEBs or MSEBs to the I/O enclosures attached to the processor
enclosures. However, when you trace pathways to the remaining enclosures in your system, do not trace
through the blacked-out area. All pathways end when they reach that enclosure.
Circle all enclosures that are affected by the enclosure removal. List them in reverse numeric order, highest
to lowest. This is the order in which you will remove them from your system.
