RDF Processes
RDF Processes
To accomplish its four major tasks, RDF runs different processes on the primary
system and the backup system. These processes (the monitor and extractor on the
primary system and the receiver, updaters, and purger on the backup system) divide
these tasks as summarized in the following pages. The relationship of these processes
to one another is illustrated in Figure 1-4. More details about their operation appear
under RDF Operations.

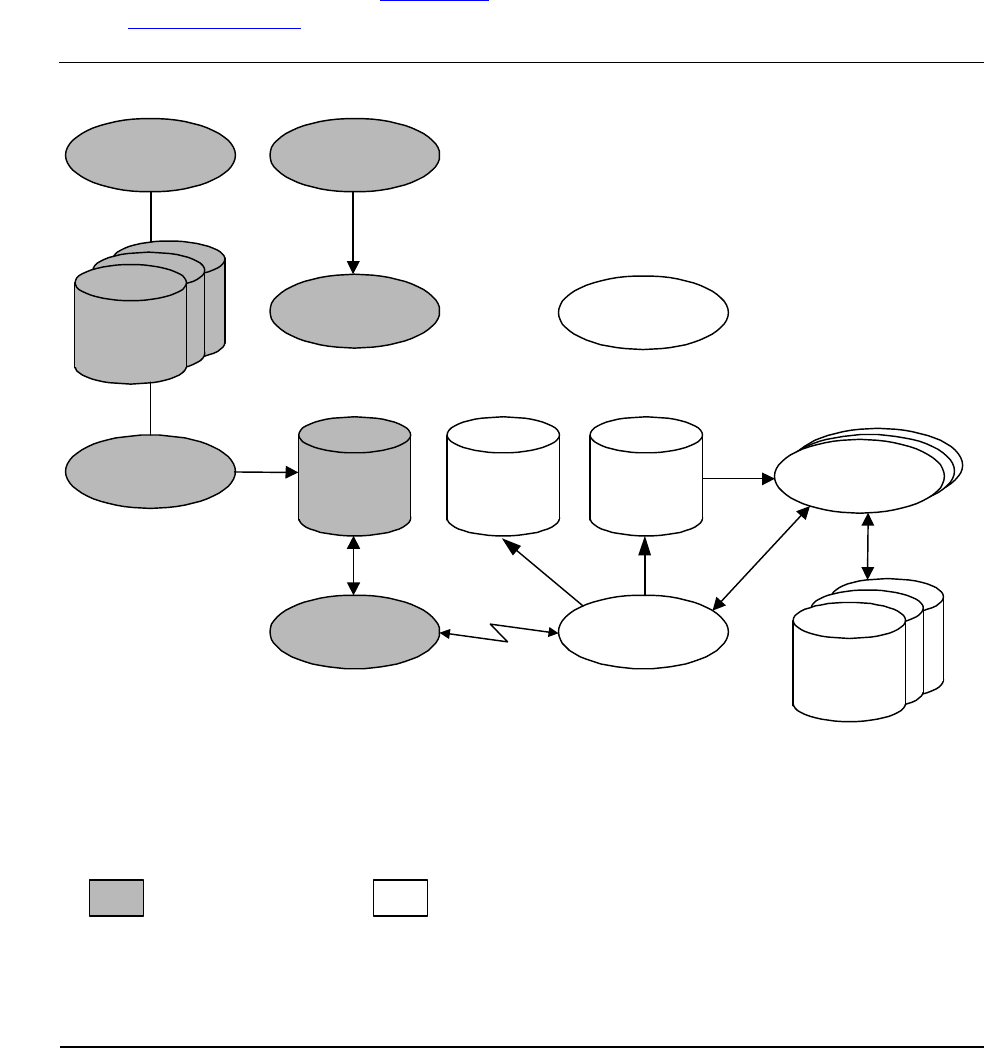

Figure 1-4. RDF Subsystem Processes
