Terminal Sets 101
10-3 Changing Terminal Set Settings
Follow the steps below to modify Terminal set settings.
1. Click on the Terminal Sets option in the Manage menu.
2. The Terminal Sets dialog box is displayed. Select the Terminal Set to modify from the Available Terminal
Sets list and click on the Properties button.

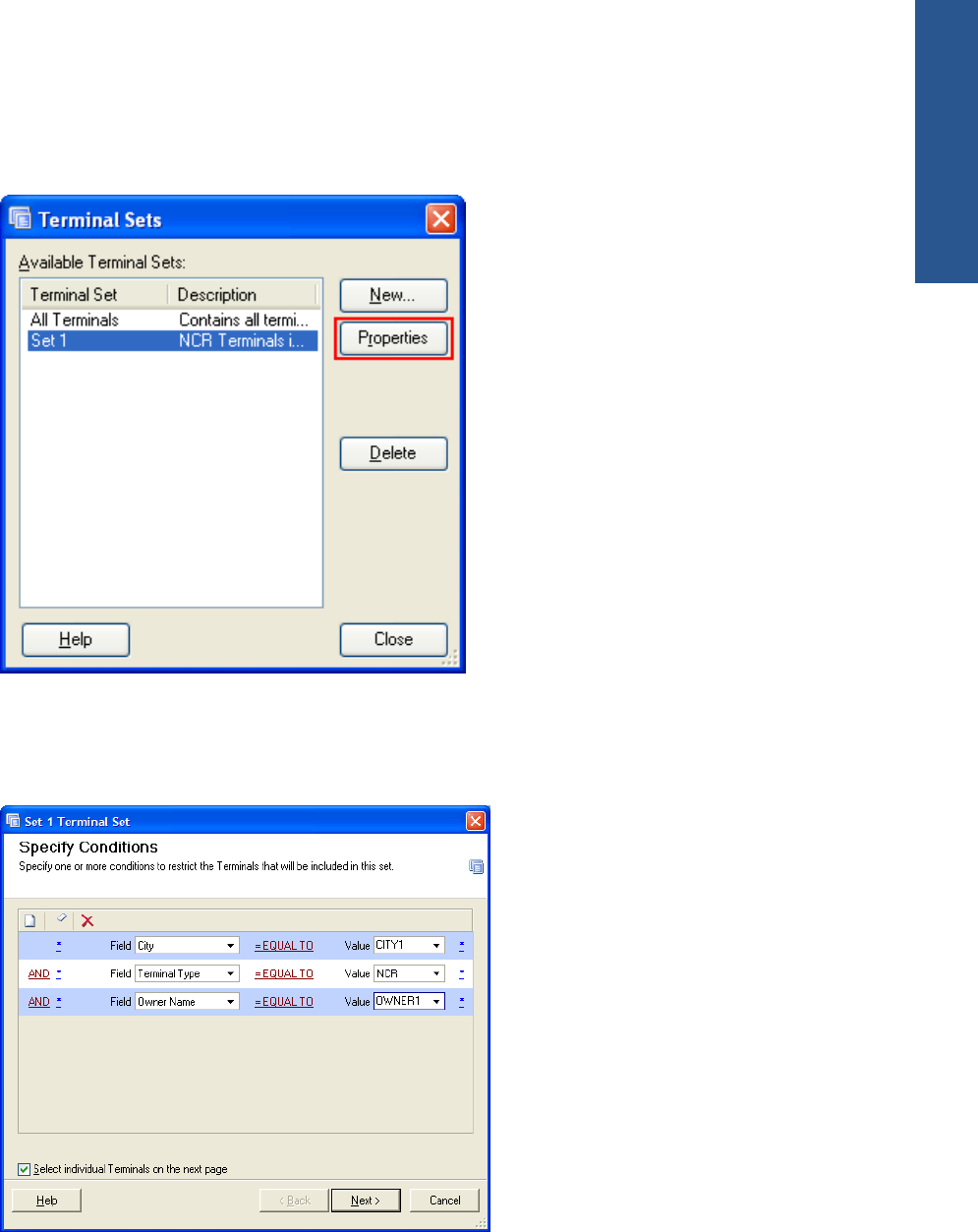

Figure 10-6 Terminal Sets Dialog Box with Properties Button
3. The Terminal Set - Specify Conditions wizard page is displayed. Make the required modification in the
conditions in the page. In the example below, we will be adding another condition for Owner Name equal
to OWNER1. The Terminal set will now include all the Terminals with Terminal Type as NCR in the city
CITY1 and with Owner Name equal to OWNER1.
Figure 10-7 Terminal Set Dialog Box – Specify Conditions Wizard Page
Click on the Next button to continue.
4. The Additional Terminals wizard page is displayed if you select the Select individual Terminals on the next
page check box in the Specify Conditions page. Change the information, if required, and click on the Next
button.
5. The Terminal Set Name wizard page is displayed. Edit the Name and Description, if required, and click on
the Finish button. The Terminal Sets dialog box is displayed. Click on the Close button to complete the
process.
Terminal Sets
