Action History 143
3. Clicking on press the button to add a new condition button will add a new condition in the following
format.
<Filter Column Name> <Operator> <root>
Where,
• Filter Column Name: Name of the column on which the filter is applied. For example, Terminal ID.
Click on the link and select the column name using the displayed drop-down list.
• Operator: The type of operator. For example, like. Click on the link and select the operator using
the displayed drop-down list.
• <root>: The value for the filter column. Click on the value link and enter the value in the displayed
text box.

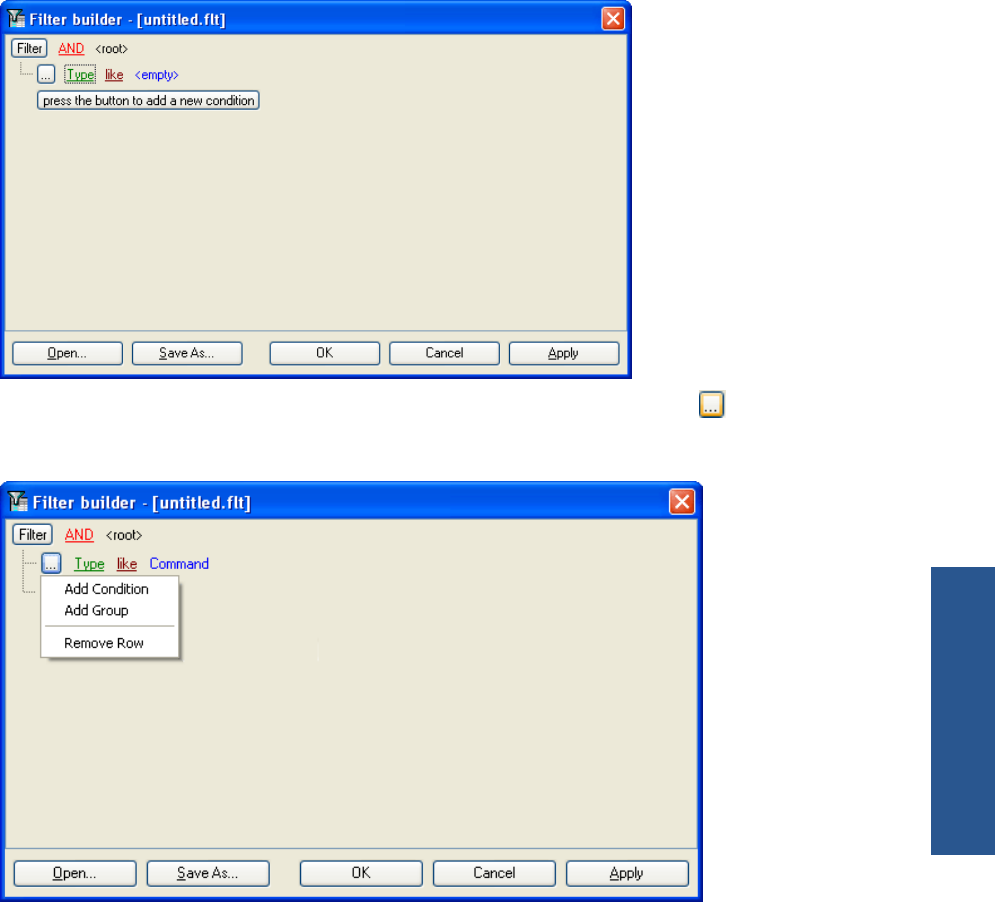

Figure 18-5 SST/OB Filter Builder Dialog Box
4. You can use the Add Group option to add multiple conditions in the filter. Click on or Filter button and
select the Add Group option from the list.
Figure 18-6 SST/OB Filter Builder-Adding a Condition/Group Dialog Box
