Configuring Hours of Operation 165
3. The Schedule dialog box is displayed.

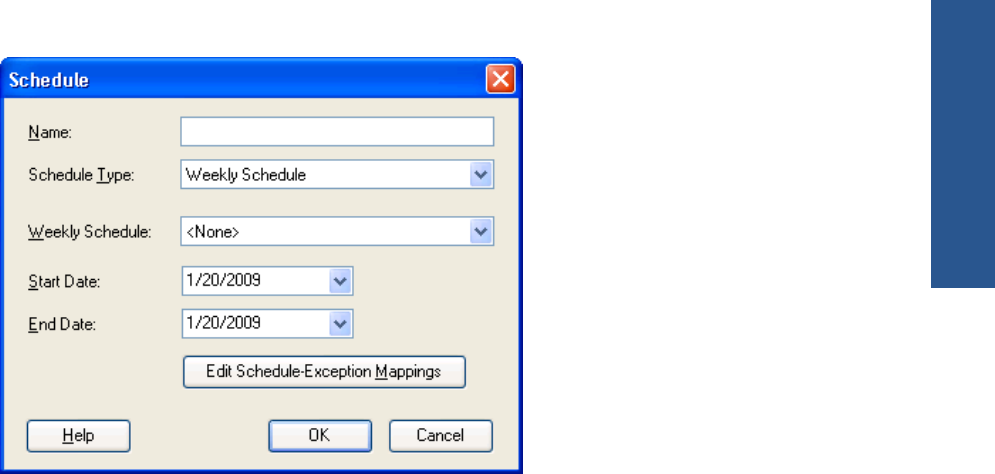

Figure 20-2 Schedule Dialog Box
Enter the following details in the corresponding fields:
a. Name: Enter a name for the schedule in the Name field.
b. Schedule Type: Specify the type of schedule to be assigned. The options available are:
• Available 24 hours: The terminals under this schedule type would be available 24 hours a day.
• Weekly Schedule: The terminals under this schedule type would be available on the basis of weekly
schedule.
c. Weekly Schedule: Assign a weekly schedule using the corresponding drop-down box. This field would
be enabled only when you select Weekly Schedule option from the Schedule Type.
d. Start Date/End date: Specify the Start Date/End Date for the schedule.
e. Edit Schedule-Exception Mappings: Use the Edit Schedule-Exception Mappings button to map the
Exception schedules with the terminals. For details, refer to Schedule Exception Mapping.
4. Click on the OK button to save the changes.
This completes the procedure for creating a schedule.
Configuring Hours of Operation
