Application Options 32
4-4 Database Options

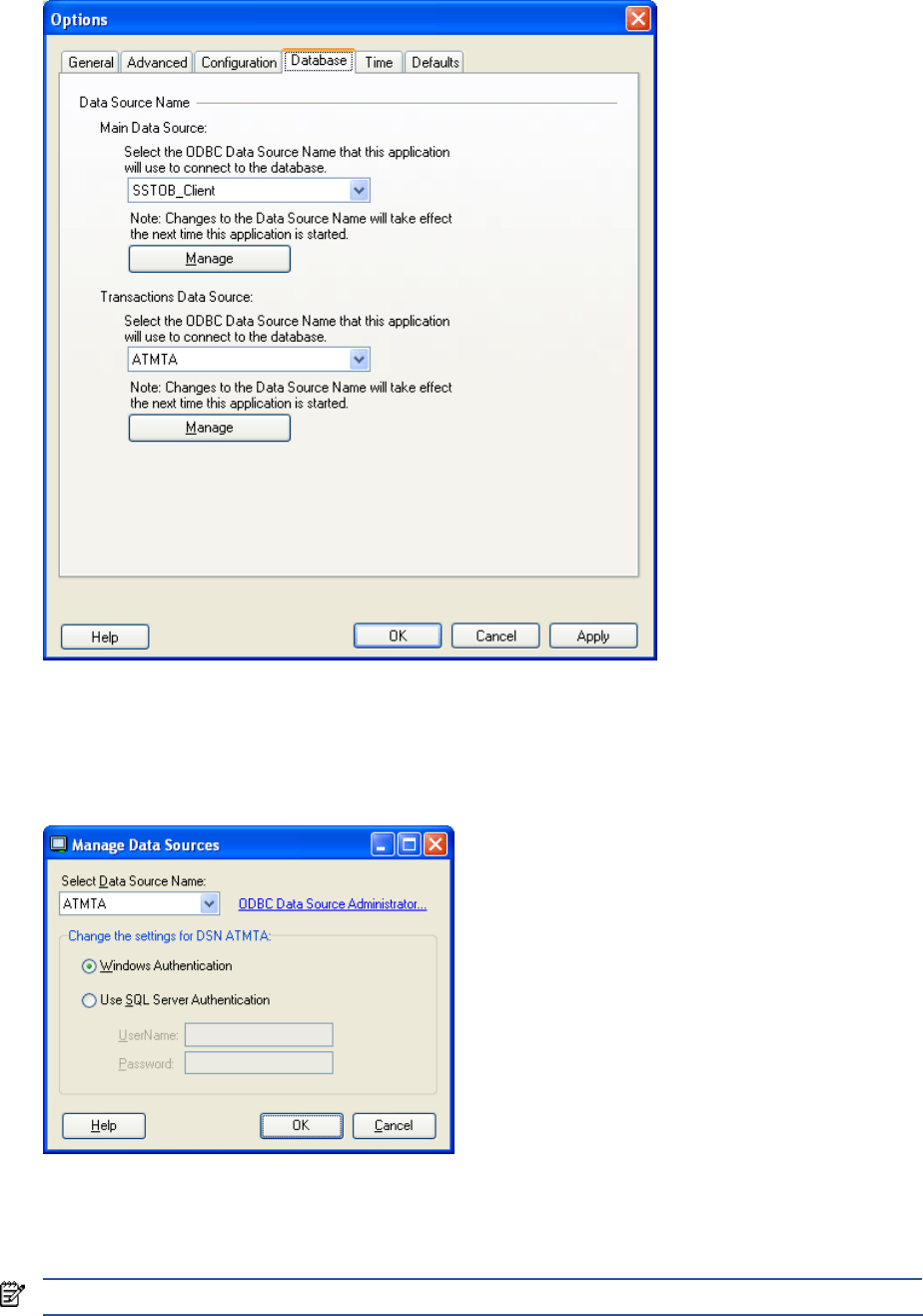

Figure 4-4 Options Dialog Box – Database Tab
The Database tab page can be used to configure the following data sources:
• SST/OB data source
• Transaction data source (If ATM Transaction Analyzer product has been configured with SST/OB)
Clicking on the corresponding Manage button will display the Manage Data Sources dialog box.
Figure 4-5 Options Dialog Box – Database Tab
Select the Data Source name from the Select Data Source Name drop-down box. You can use the ODBC Data
Source Administrator link to access the Microsoft ODBC Data Source Administrator dialog box. This dialog box
can be used to add, remove or configure a data source.
Select the authentication type and the corresponding User name and password and click on the OK button.
NOTE: The changes to the Data Source Name will take effect the next time the application is started.
