SST Operations Bridge Administration Guide, Version 1.1

Policies 55
6-4 Event Policies
Event policies are another medium to introduce custom faults (apart from custom fault policies) into the SST/OB
system. You first need to define a Custom Fault and then create the condition using an Event Policy to set or reset
it. This fault can then be used to create a Standard Policy in the SST/OB Monitoring system. Apart from support
to monitoring, the Event Policies also provide maintaining XPNET object states for objects, for example: Device
Handlers, Line Handlers, Resource nodes, Routers etc. There are a few out-of-the-box Views that help the
Operations staff to determine the Impact of an object going down in terms of Terminals impacted by it.
SST/OB provides the following out-of the-box standard policies specifically for the BASE24 switch application:
• Device Handler Down: This policy sets the device handler down fault on the consumption of the specified
message.
• Device Handler Up: This policy resets the device handler up fault on the consumption of the specified
message.
• Line Process Down: This policy sets the line process down fault on the consumption of the specified
message.
• Line Process Up: This policy resets the line process Up fault on the consumption of the specified message.
• Resource Node Down: This policy sets the resource node down fault on the consumption of the specified
message.
• Resource Node Up: This policy resets the resource node up fault on the consumption of the specified
message.
6-4-1 Creating Event Policies
Follow the steps below to create an event policy.
1. Click on the Event Policies option in the Manage menu.
2. The Event Policies dialog box is displayed. To create a new Event Policy, click on the New button.

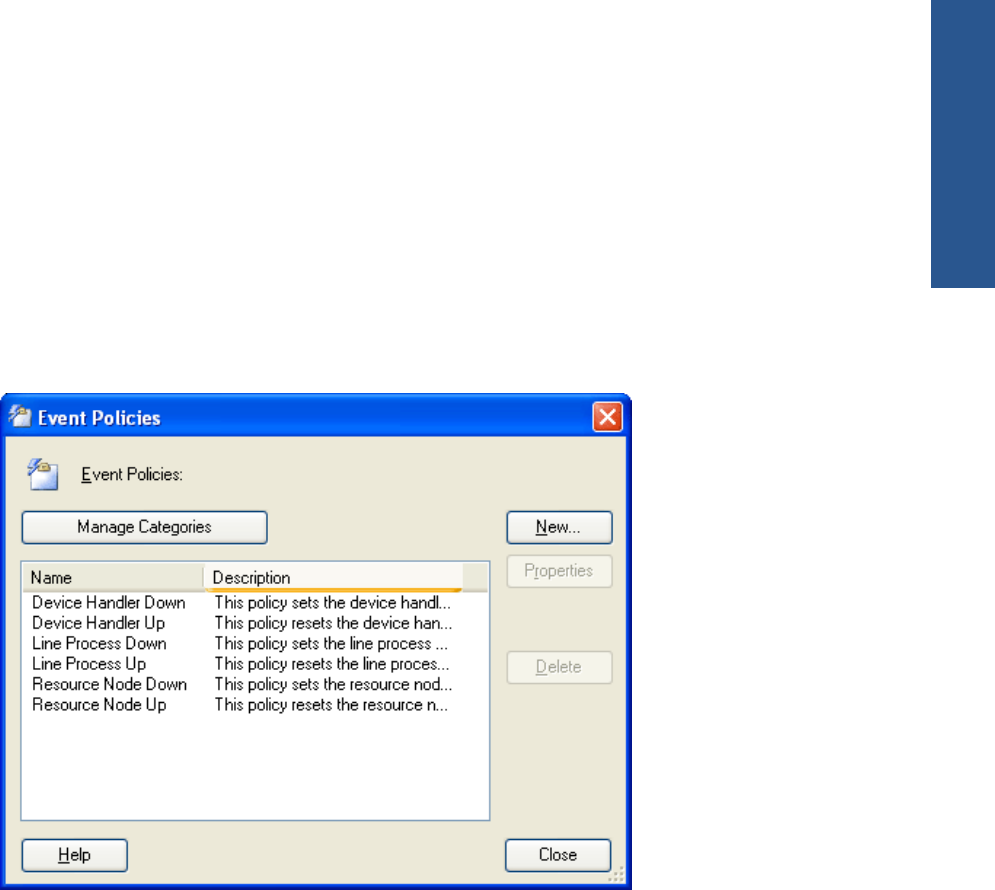

Figure 6-14 Event Policies Dialog Box
