XYGATE Merged Audit
®
Reference Manual
Appendix G: Data Mapping
XYPRO Technology Corporation 245 Proprietary and Confidential
G3: How to Use the Data Mapping Tables

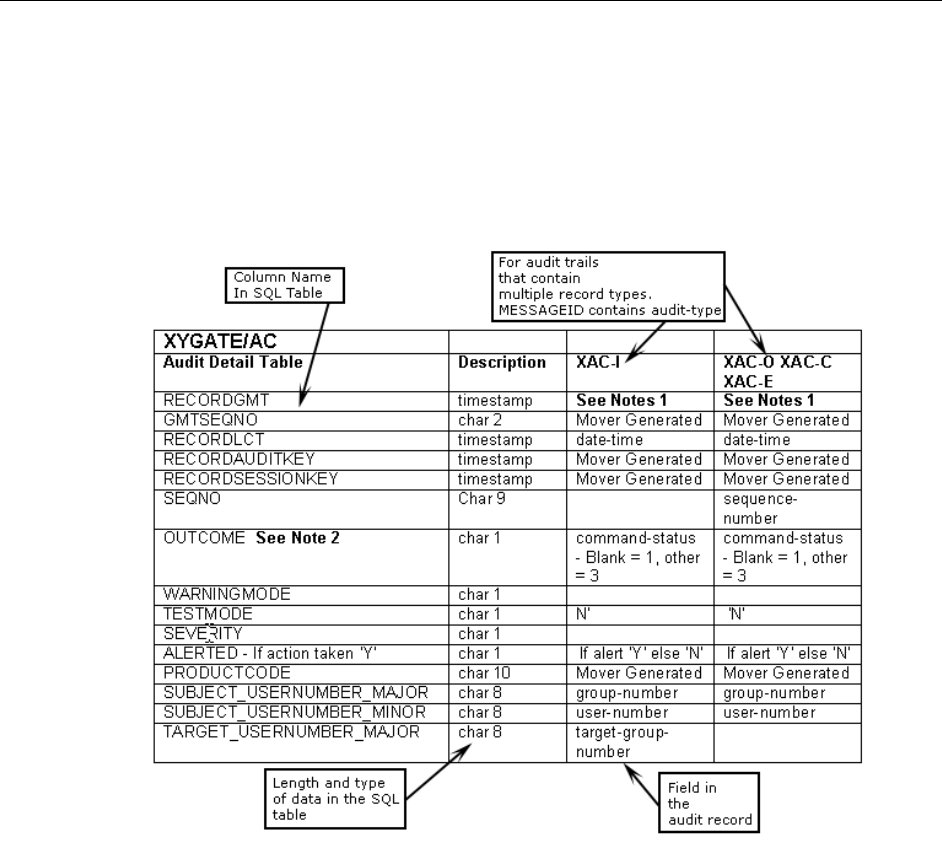

The following illustration is a “key” to interpreting the data mapping for all the different
sources of data that go into the XMA database. For example, if you are looking at the
SAFEGUARD data mapping, this illustration will help you understand how to interpret
the information provided.
