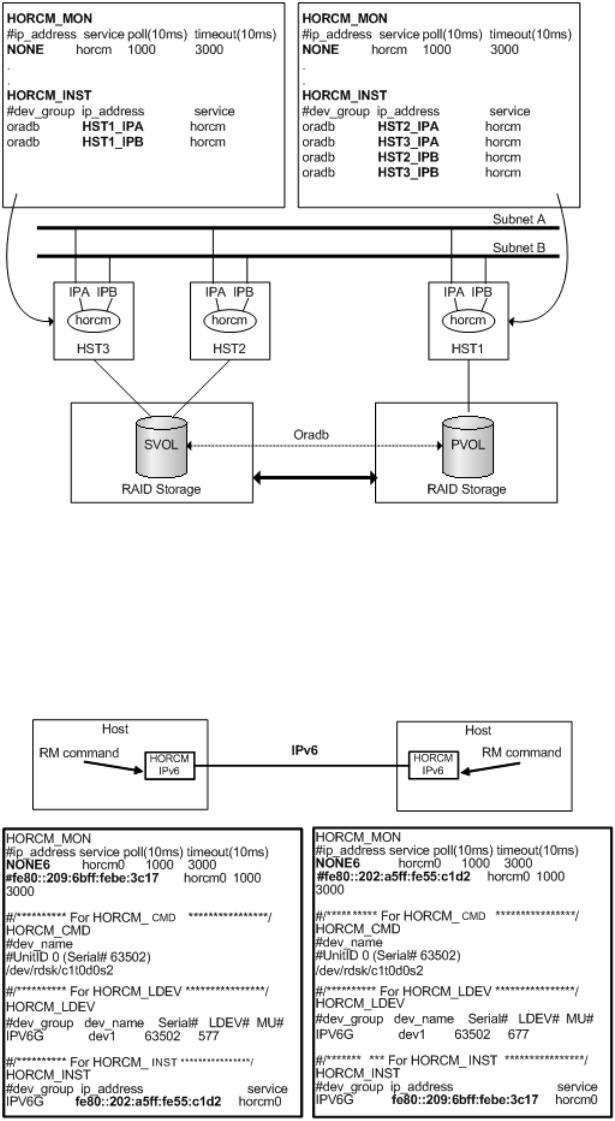

Figure 14 Configuration for Multiple Networks
For example:
# horcctl -ND -g IP46G
Current network address = 158.214.135.106,services = 50060# horcctl -NC -g IP46G
Changed network address(158.214.135.106,50060 -> fe80::39e7:7667:9897:2142,50060)
For IPv6 only, the configuration must be defined as HORCM/IPv6.
Figure 15 Network Configuration for IPv6
It is possible to communicate between HORCM/IPv4 and HORCM/IPv6 using IPv4 mapped to
IPv6.
64 Sample configuration definition files
