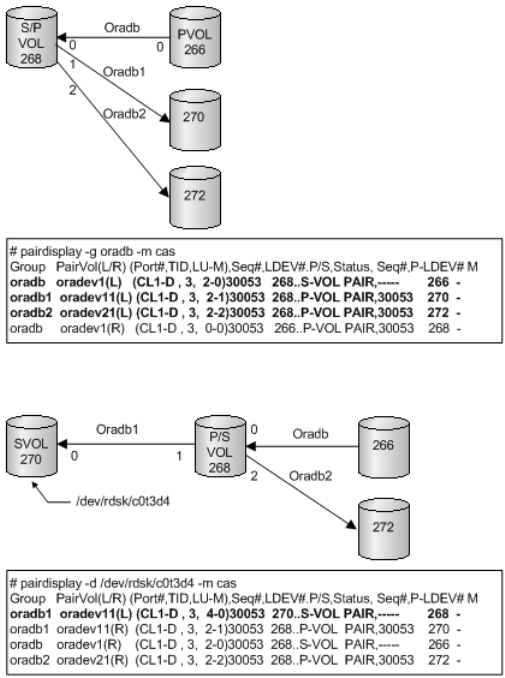

Figure 28 Pairdisplay -g on HORCMINST1
Figure 29 Pairdisplay -d on HORCMINST0
Cascading connections for Continuous Access Synchronous and Business Copy
The cascading connections for Continuous Access Synchronous/Business Copy can be set up by
using three configuration definition files that describe the cascading volume entity in a configuration
definition file on the same instance. The mirror descriptor of Business Copy and Continuous Access
Synchronous definitely describe "0" as MU#, and the mirror descriptor of Continuous Access
Synchronous does not describe "0" as MU#.
Examples of RAID Manager configurations 91
