HP XP7 RAID Manager Installation and Configuration User Guide (T1610-96065)
Table Of Contents
- XP7 RAID Manager Installation and Configuration User Guide
- Contents
- 1 Installation requirements
- System requirements
- Supported environments
- Supported Business Copy environments
- Supported Continuous Access Synchronous environments
- Supported Continuous Access Asynchronous environments
- Supported Continuous Access Journal environments
- Supported Snapshot environments
- Supported Data Retention environments
- Supported Database Validator environments
- Supported guest OS for VM
- Supported IPv4, IPv6 platforms
- Requirements and restrictions for z/Linux
- Requirements and restrictions for VM
- Porting notice for OpenVMS
- Using RAID Manager with Hitachi and other storage systems
- 2 Installing and configuring RAID Manager
- 3 Upgrading RAID Manager
- 4 Removing RAID Manager
- 5 Troubleshooting
- 6 Support and other resources
- A Fibre-to-SCSI address conversion
- B Sample configuration definition files
- Glossary
- Index

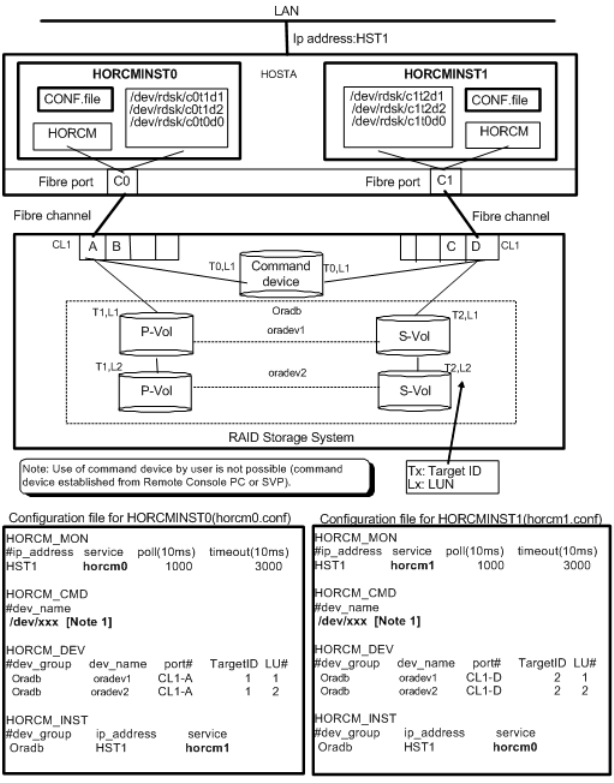

Figure 20 Continuous Access Synchronous Configuration Example for Two Instances
[Note 1] : Input the raw device (character device) name of UNIX/Windows system for command
device.
Example of RAID Manager commands with Instance-0 on HOSTA:
• When the command execution environment is not set, set an instance number.
For C shell: # setenv HORCMINST 0
74 Sample configuration definition files
