As shown in this Business Copy cascading connection example, the specified dev group is assigned
to the Business Copy mirror descriptor: MU#0 in HORCMINST0, and MU#0, MU#1 and MU#2
in HORCMINST1
Figure 27 (page 90), Figure 28 (page 91), and Figure 29 (page 91) show the pairdisplay
information for this example of a Business Copy cascading configuration.

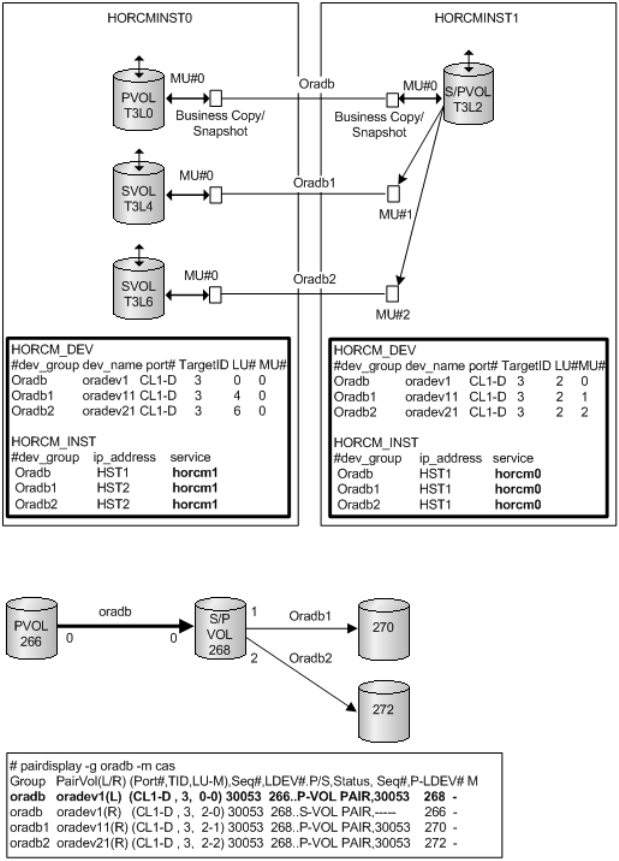

Figure 26 Business Copy Cascade Connection and Configuration File
Figure 27 Pairdisplay -g on HORCMINST0
90 Sample configuration definition files
