HP XP P9000 Audit Log User and Reference Guide

the syslog server. See RFC3164 (Request For Comment) issued by the IETF (Internet Engineering
Task Force) for details of syslog.
• You must have Audit Log Administrator (View & Modify) permission to configure syslog server
settings.
• Keep a list of the items you entered in the window, such as the IP address. You may need to
enter them again when an SVP is replaced.
To transfer audit log files:
1. Make sure the storage system is connected to syslog servers on a LAN. Configure the setting
of the syslog server and connect to the SVP before applying the setting to transfer audit logs
to the syslog server. See the user’s manual of the syslog server for the details of the syslog
server setting.
2. Open the Remote Web Console main window.

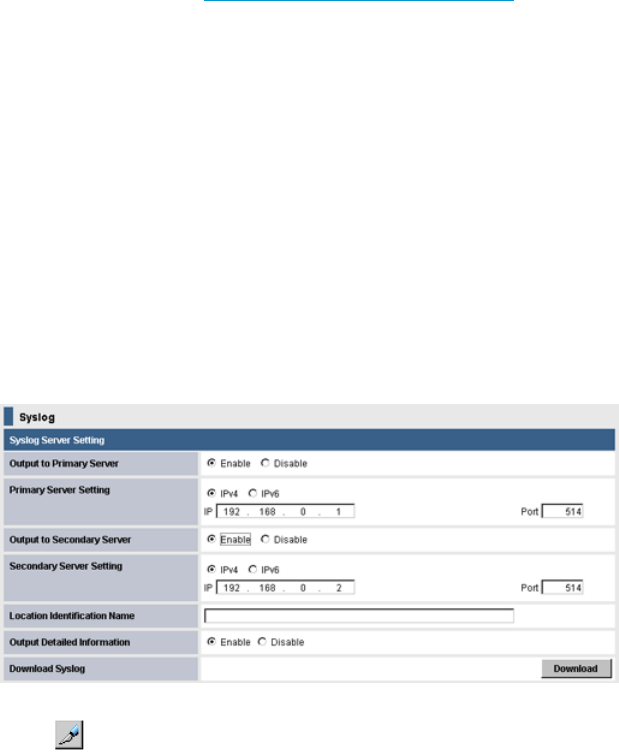

3. Click Settings→Security→Syslog. The Syslog window appears.
4. Click to change to Modify mode.
5. Perform the following if using a primary syslog server.
1. Select Enable in Output to Primary Server.
2. Enter the IP Address in Primary Server Setting. Do not enter the periods.
3. Enter the Port Number in Primary Server Setting. You can enter a number from 1 to
65,535.
6. Perform the following if using a secondary syslog server.
1. Select Enable in Output to Secondary Server.
2. Enter the IP Address in Secondary Server Setting. Do not enter the periods.
3. Enter the Port Number in Secondary Server Setting. You can enter a number from 1 to
65,535.
7. Enter the name of the storage system from which you are transferring the audit log file in
Location Identification Name. The name can contain up to 32 one-byte characters, including:
• Letters (A-Z and a-z)
• Numbers (0-9)
• Symbols (including ! " # $ % & ' ( ) = - ~ ^ | \ { } [ ] @ ` : ; * + _ ? / < > .)
• You cannot use a comma (,) or a space.
8. Click Enable for Output Detailed Information.
9. Click Apply.
10. Confirm that the syslog server is receiving the log of syslog server setting when the setting
operation has completed. The function name of the log is AuditLog and the operation name
is “Set Syslog Server”.
