Setting Up Your Computer 5

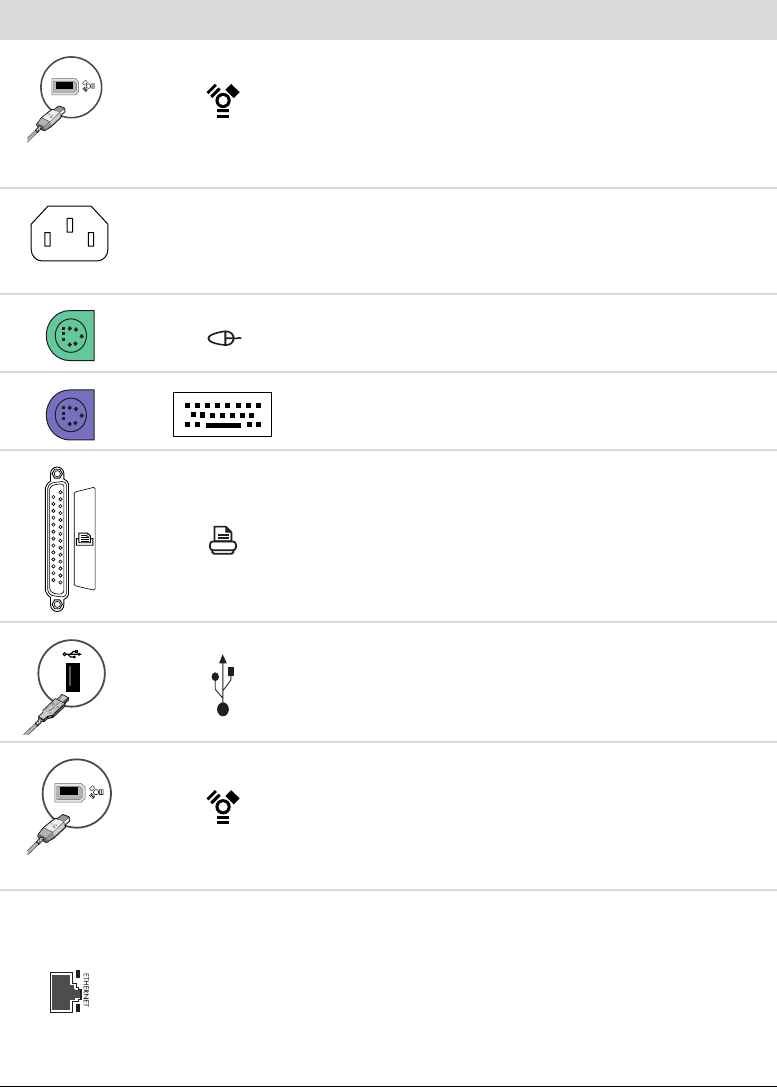

FireWire (IEEE 1394) connector to connect video
cameras and other devices with very fast transfer
rates.
NOTE: You must use a 6-pin FireWire (IEEE 1394)
transfer cable with this 6-pin connector.
Power connector
Mouse connector to connect a mouse.
Keyboard connector to connect a keyboard.
Printer (parallel) connector to connect a parallel
printer. (Select models only.)
Universal Serial Bus (USB) 2.0 connector to connect
a mouse, keyboard, digital camera, or another
device with a USB connector.
FireWire (IEEE 1394) connector to connect video
cameras and other devices with very fast transfer
rates.
NOTE: You must use a 6-pin FireWire (IEEE 1394)
transfer cable with this 6-pin connector.
ETHERNET
Ethernet LAN connector is a network interface
adapter (also called a network interface card, or
NIC) which connects to an Ethernet (10BaseT) or
Fast Ethernet (100BaseT) network hub. Connect this
adapter in your computer to your local area network
(LAN) hub or any broadband connection.
The green LED indicates a valid connection.
Connector Icon/label Description and function (continued)
