Connecting the Television Signal and Video Cables 55
Connecting a DVI device
The DVI cable, DVI-to-HDMI converter, and audio cables are sold separately.
1 Connect the video cables:
If your computer has an HDMI connector, use a DVI video cable with a DVI-to-
HDMI converter. Connect the HDMI end of the converter to the Digital Video
connector on the computer and connect the DVI cable to the DVI equipment.
Or
If your computer has an DVI connector, use a DVI video cable, and connect the
cable to the computer and to the DVI equipment.
2 Connect the audio cables to the DVI equipment and to the computer.
3 Turn on the DVI device, and start play.
4 Plug in the computer.
5 Turn on the computer.

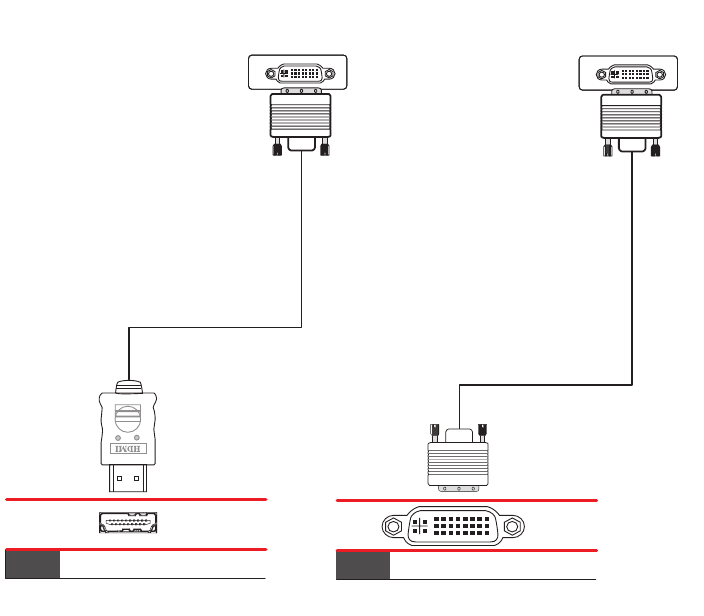

Digital Video
Output
Digital Video
(DVI)
Connector on the Computer
HDMI
Output
Digital Video
(DVI)
Connector on the Computer
